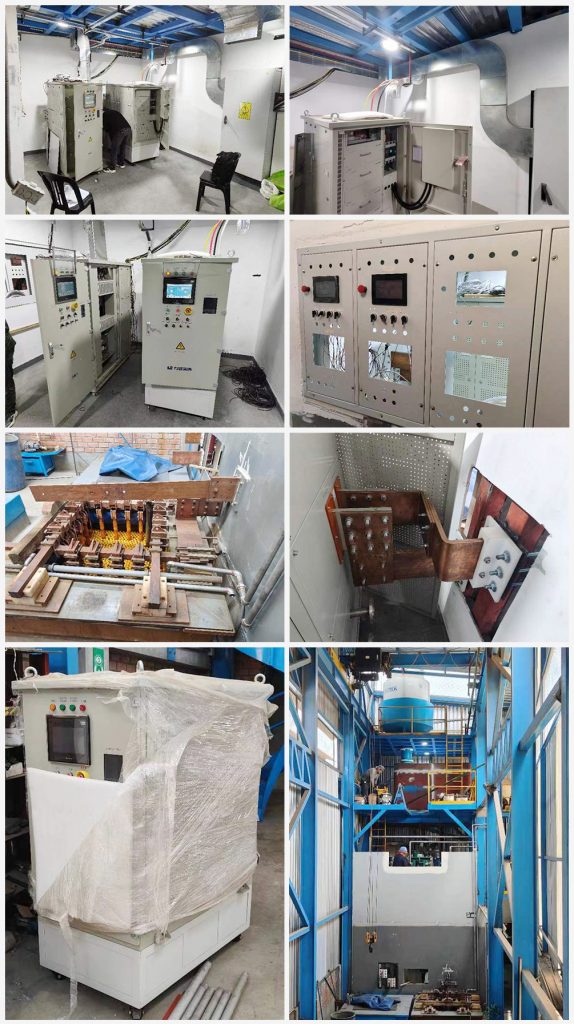

Mexico 15V 15KA Water Cooled IGBT Type Hard Chrome Plating Rectifier Project

The products are IGBT rectifiers, application in customer's plating lines, the design adopt water-cooled, 7 modules combined in parallel. Each module has a hot-plug function, modules can be replaced without downtime, and not affecting normal production.

With touch screen control panel, red emergency button and all necessary protection.

PLC & touch screen control is used for operation, which can implement automatic control with customer's production. RS485 and 4~20MA, 0~10V analog signal control type.

Randomly we also included English maintenance manual and operation manual, operation and virtual video training document, definition diagram of all wires and connectors.

The rectifiers have been put into use, customer feedback that the performance is very stable, easy to operate, high efficient and energy saving greatly reduces production costs.

Project description:

Output current: 0~15KA

Output voltage: 0~15V

Efficiency: Over 90%
