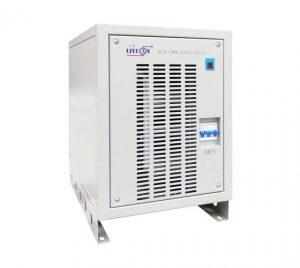

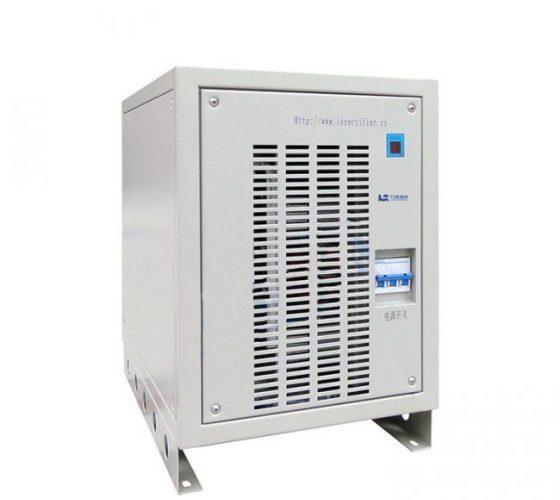

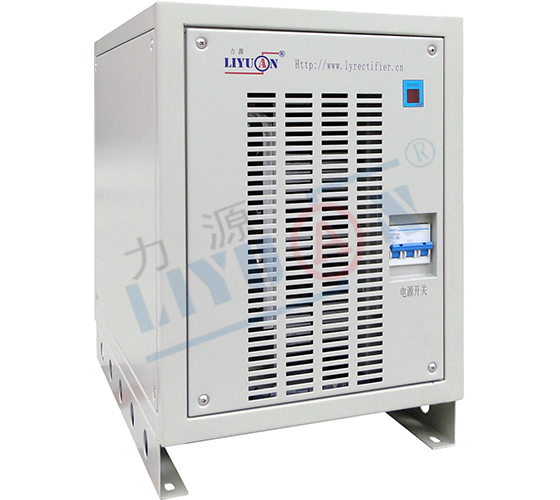

12V 3000A Air Cooling Rectifier For PCB Plating

Input parameters: Three phase AC380V±10%, 50HZ

Output parameters: DC 0~12V 0~3000A

Output mode: Common DC output

Cooling method: Air cooling

Power supply type: IGBT-based High-frequency Power Supply

Application Industry: PCB Naked layer copper plating


In the PCB manufacturing process, electroless copper plating is an important step. It is widely used in the following two processes. One is plating onto bare laminate and the other is plating through hole, because under these two circumstances, electroplating cannot or can hardly be carried out. In the process of plating onto bare laminate, electroless copper plating plates a thin layer of copper on the bare substrate to make the substrate conductive for further electroplating. In the process of plating through hole, electroless copper plating is used to make the inner walls of the hole conductive to connect the printed circuits in different layers or the pins of the integrated chips.

The principle of electroless copper deposition is to use the chemical reaction between a reducing agent and a copper salt in a liquid solution so that the copper ion can be reduced to a copper atom. The reaction should be continuous so that sufficient copper can form a film and cover the substrate.

This series of rectifier is special designed for PCB Naked layer copper plating, adopt small size to optimized the installation space, the low and high current can be controlled by automated switching, the air cooling used independent enclosed air duct, synchronous rectification and energy saving, these features ensure high precision, stable performance and reliability.

Technical Parameters

Characteristic Types

Parameter Items

Technical Requirements
Power Types  Power types High-frequency Power Supply
Model and specifications HIFB-3000A/12V
Cooling mode Air-cooled
Switch tube type IGBT
Input Characteristics Rated Input Voltage Three-phase,AC380V±10% ,50HZ
Rated Input Power 42.1KVA
Rated Input Current AC 64.0A
Input Power Factor COSΦ≥0.95
Output Characteristics Output Voltage DC  0~12V
Output Current DC  0~3000A
Stabilized Current Precision ≤1%
Stabilized Voltage Precision ≤1%
According to accuracy 1A,0.01V
Rated Output efficiency ≥91%
Environmental Conditions Installation site Indoor installations
Altitude ≤2000 meters
Ambient temperature -20℃~40℃
Relative humidity ≤90%
Control Mode Operating mode PLC, ADDA, Ethernet, RS485 or RS232
Weight Net weight About 100KG
External Dimension Height*Width*Depth H580mm×W470mm×D700mm
Protection Characteristics With over voltage, over current, overload, short circuit, overheating and other abnormal self-protection function
Optional models
Application Model Output Parameters
Plating TBFB-500A/5V 5Vdc/500A
TBFB-600A/10V 10Vdc/600A
TBFB-1000A/10V 10Vdc/1000A
TBFB-1500A/10V 10Vdc/1500A
TBFB-5000A/15V 15Vdc/5000A
HISB-200A12V 12Vdc/200A
HISB-300A12V 12Vdc/300A
HISB-500A12V 12Vdc/500A
HISB-1000A8V 8Vdc/1000A
HISB-1000A12V 12Vdc/1000A
HISB-1500A12V 12Vdc/1500A
HISB-2500A12V 12Vdc/2500A
HISB-3000A12V 12Vdc/3000A
HISB-4000A12V 12Vdc/4000A
HISB-5000A12V 12Vdc/5000A
HISB-7000A12V 12Vdc/7000A
TBSB-8000A/12V 12Vdc/8000A
TBSB-4000A/12V 12Vdc/4000A
TBSB-8000A/12V 12Vdc/8000A
TBSB-3000A/12V 12Vdc/3000A
TBSB-400A/4V 4Vdc/400A
TBSB-800A/12V 12Vdc/800A
TBFA-4000A/12V ±12Vdc/4000A
HMFB-10A5V 5Vdc/10A
TBFA-2000A/12V ±12Vdc/2000A
TBFBZ-300A/5V 5Vdc/300A
TBFBZ-800A/5V 5Vdc/800A
TBFBZ-600A/6V 6Vdc/600A
TBSB-12KA/12V 12Vdc/12KA
TBSB-6000A/12V 12Vdc/6000A
TDSB-10KA100V 100Vdc/10KA
