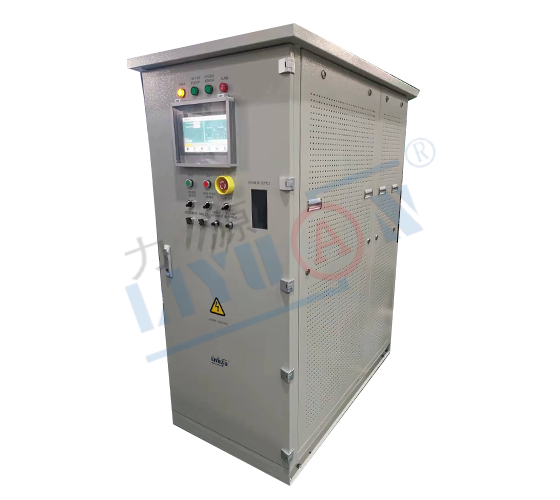

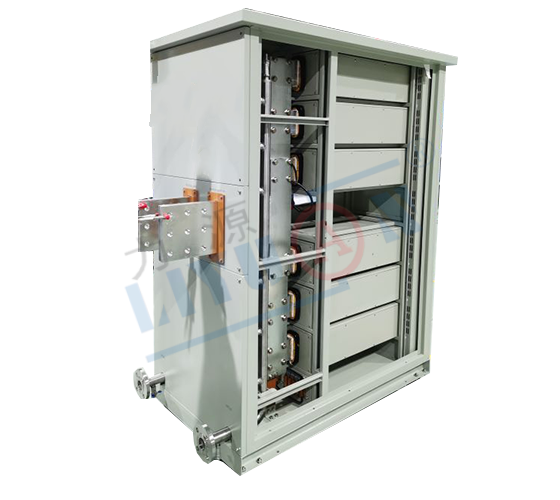

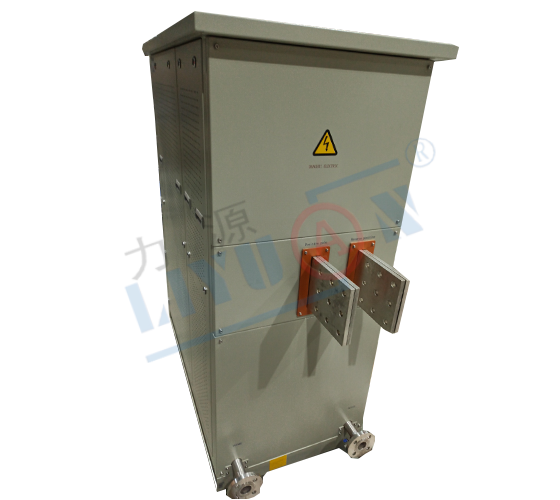

±15V 12000A Hard Chrome Plating Rectifier

AC input voltage enters the rectifier circuit, where it’s filtered and converted into high-voltage DC output. This ±15V 12000A hard chrome plating rectifier is available at factory price.

The “variable frequency conversion” stage inverts this high-voltage direct current into approximately 30kHz high-frequency alternating current. This high-frequency AC is then transformed into secondary voltage via a high-frequency transformer and filtered through a high-frequency rectifier circuit to produce the required output voltage. The ​electroplating rectifier power supply employs a control circuit to sample output voltage and current. These sampled signals undergo closed-loop feedback to generate pulse width modulation (PWM) signals, which regulate the inverter circuit and maintain stable output voltage/current – a critical requirement for precision electroplating applications.

1. Copper plating: priming, enhance the ability to adhere to the plating layer, and the ability to resist corrosion. (Copper is easy to oxidation, oxidation, copper green no longer conductive, so copper-plated products must do copper protection)
2. Nickel plating: priming or appearance, to enhance the corrosion resistance and wear resistance, (where the chemical nickel for the modern process of wear resistance than chrome plating). (Note that many electronic products, such as DIN head, N head, no longer use nickel priming, mainly because nickel is magnetic, will affect the electrical properties inside the passive intermodulation)
3. Gold plating: improve the conductive contact impedance, enhance signal transmission. （Gold is the most stable, but also the most expensive.)
4. Palladium-nickel plating: improve the conductive contact impedance, enhance signal transmission, wear resistance than gold.
5. Tin-lead plating: improve soldering ability, soon to be replaced by other substitutes (because of the lead content is now mostly changed to bright tin and mist tin plating).
6. Silver plating: improve the conductive contact impedance, improve signal transmission. (Silver performance is the best, easy to oxidation, oxidation also conductive)



Elements of electroplating：

1. Cathode: the plated object, referring to various connector terminals.
2. Anode: If it is soluble anode, it is the metal to be plated. If it is insoluble anode, most of them are precious metals (white gold, iridium oxide).
3. Plating solution: plating solution containing ions of the metal to be plated.
4. Plating tank: The tank that can bear and store the plating solution, generally considering strength, corrosion resistance, temperature resistance, etc.
5. Rectifier: The equipment to provide DC power supply.

If you require electroplating rectifiers with different specifications, we can custom-design them to meet your requirements. Please contact us for more information.​

Looking for the factory price of a ±15V 12000A hard chrome plating rectifier? Liyuan Haina Rectifier, a professional manufacturer with 27+ years specializing in industrial rectifiers, supplies global clients including the United States, Sweden, Netherlands, Italy, Spain, South Africa, Russia, Germany, Japan, South Korea, Malaysia, etc. Our advanced factory delivers cost-effective Made-in-China solutions, with competitive prices and customizable options. Contact us for sales inquiries.

Hot Tags: ​±15V 12000A Hard Chrome Plating Rectifier, chrome plating rectifier, Polarity reversing, industrial rectifier, Made in China
