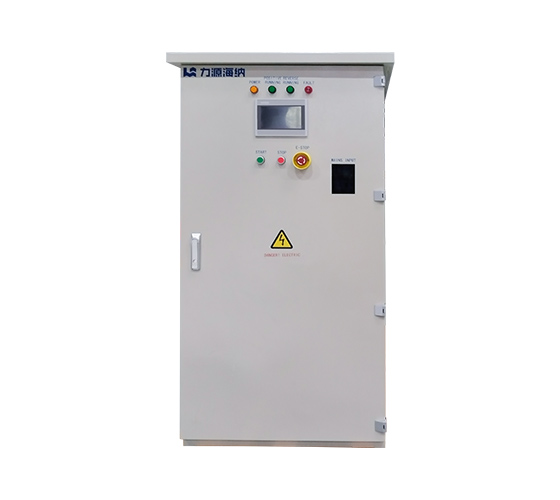

Input parameters: Three phase, AC380V±10% ,60HZ
Output parameters: DC 0～±15V; DC 0～±12500A
Output mode: Polarity reversing
Cooling method: Water cooling
Power supply type: IGBT-based power supply
Application Industry: Surface treatment industry, such as hard chrome, zinc and copper plating.
In an ±15V 12500A hard chrome plating rectifier power supply, after the AC input voltage is filtered by a rectifier circuit, high-voltage DC power is obtained. The “variable frequency conversion” stage inverts this high-voltage direct current into approximately 30kHz high-frequency alternating current. This high-frequency AC is then transformed into secondary voltage via a high-frequency transformer and filtered through a high-frequency rectifier circuit to produce the required output voltage. The electroplating rectifier power supply employs a control circuit to sample output voltage and current. These sampled signals undergo closed-loop feedback to generate pulse width modulation (PWM) signals, which regulate the inverter circuit and maintain stable output voltage/current – a critical requirement for precision electroplating applications.
Manufacturers widely use electroplating rectifier equipment for various surface treatment applications, including PCB electroplating, hard chrome coating, copper plating, zinc plating, gold plating, tin plating, nickel plating,and silver plating, among other metal finishing.
1)Field application diagram：
2)Industry application examples:
› Modular parallel connection
› Optional N+1 redundant backup
› Capable of online hot maintenance
› RS485 digital control function
› Low-voltage MOS tube rectification
› High power factor, high efficiency
› Reasonable structural design
› Effective sealed isolation
› No water joint design inside the unit
› Practical and effective multiple protection system
› Full soft switch technology
› High reliability
› Low noise, high protection level
Stops Rust & Chemical Damage
Zinc plating on steel parts creates a barrier against corrosion.
Reduces Wear & Tear
Hard chrome plating cuts friction, making components last longer.
Looks Matter Too
Gold finishes for jewelry / Chrome for car trim – it’s about aesthetics.
Keeps Current Flowing
We plate copper onto circuit boards because it conducts electricity best.
Better Solder Joints
Tin plating helps electronics components bond properly during assembly.
Fix Worn-Out Parts
Rebuild engine crankshafts or bearings by adding new plating material.
Specialized Solutions
Aerospace needs nickel plating: handles extreme heat.
Medical implants use biocompatible coatings so bodies don’t reject them.
Copper Plating
Primarily for base layers – boosts corrosion resistance and helps subsequent coatings stick better.
Watch for: Oxidation (forms non-conductive patina). Always needs a topcoat.
Nickel Plating
Works as a base layer or decorative finish. Fights corrosion/wear – electroless nickel rivals chrome durability.
Heads-up: Magnetic nature messes with electronics (e.g., DIN connectors). Avoid in signal-critical areas.
Gold Plating
King of contact surfaces: Optimizes conductivity and signal clarity.
Stable performance; High cost
Palladium-Nickel Plating
Outperforms gold: Better signal transmission + extreme wear resistance.
Why it wins: Palladium’s anti-corrosion + nickel’s hardness.
Tin-Lead Plating
Was the solderability champ, now phased out (lead regulations).
Switched to: Bright/matte tin alternatives.
Silver Plating
Unbeatable conductivity/signal quality – still works when oxidized.
Downsides: Tarnishes without maintenance; premium pricing.
› Cathode
The object to be plated (e.g., connector terminals or metal surfaces) where metal ions deposit into a solid coating.
› Electroplating Anodes Explained
Soluble Anodes
• Material: Matching plating metal (e.g., copper anodes for copper baths)
• Function: Dissolves to maintain metal ion concentration
• Key use: Standard plating operations
Insoluble Anodes
• Material: Non-consumable substrates (e.g., titanium/iridium oxide)
• Function: Facilitates electron transfer without dissolution
• Key use: Precious metal plating (white gold, etc.)
› Plating Solution
Contains ions of the target metal. Composition and concentration determine coating thickness, adhesion, and appearance.
› Plating Tank
Material Requirements:
• Must handle corrosive environments and thermal cycling
• Typical choices: polypropylene or titanium alloys
Role: Stores solution and maintains stable plating conditions.
› Rectifier
Converts AC to DC power to drive electrolysis.
Adjust voltage/current to control deposition speed and coating thickness.
› Auxiliary Equipment
Filters: Remove impurities from the solution.
Heaters: Maintain solution temperature.
Stirrers: Ensure uniform mixing.
Air Cooling:Heat dissipation fan + air duct + comb heat sin

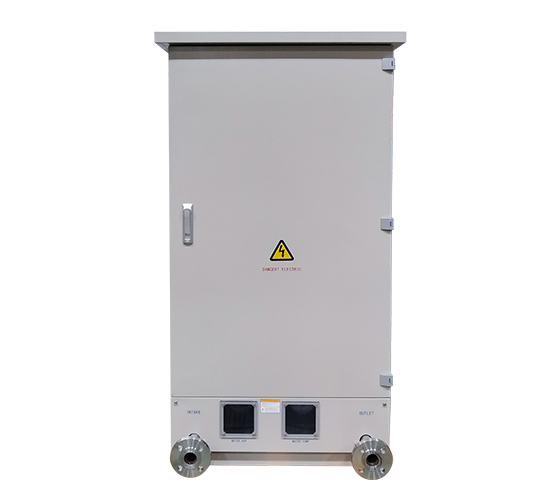

Water Cooling：Built-in water circulation line
| Characteristic Types | Parameter
Items |
Technical Requirements |
| Input feature | Rate Input Voltage | Three-phase, AC380V±10% 60HZ |
| Rate Input Current | AC 330A | |
| Rate Input Power | 217KVA | |
| Input Power Factor | COSΦ≥0.95 | |
| Output feature | Output Voltage | DC 0～±15V |
| Output Current | DC 0～+12500A; 0～-12500A | |
| Stabilized Current Precision
precision Stab |
≤1% | |
| Stabilized Voltage Precision | ≤1% | |
| Ripple coefficient of the rated current | ≤3%(Rated current) | |
| Rated output efficiency | η≥91%
|
|
| Rectification feature | Constitution of the plant | The power cabinet 12500A/±15V consists of 5 TBSA-2500A / ± 15V sub-units in parallel |
| Rectifier system | full-wave rectification | |
| Insulation feature | Dielectric strength | Between primary and secondary: 2000V rms 1min; |
| Between primary and ground: 2000V rms 1min | ||
| Between control circuit and ground: 1500V rms 1min | ||
| Insulating Resistance | Input—Output：≥5MΩ | |
| Input—Chassis：≥5MΩ | ||
| Output—Chassis；≥5MΩ | ||
| Protection feature | Overvoltage, overcurrent, short circuit circuit, phase deficiency, overheating, water leakage and other protection functions | |
| Other feature | Noise | ≤60Db |
| MTBF | ≥50000h | |
| Transformer insulation grade
|
Class B | |
| Running status | The product can be run continuously at full load | |
» Solution
Liyuan will keep up with the world’s latest technology closely, and uphold the concept of providing customers with high-quality power supplies and professional integrated services.
With advanced design and rich experience in rectifier manufacturing, we will provide the best power solutions as well as the most stable and efficient power supply for users both at home and abroad.
» Technical Capability
LIYUAN rectifier is the most competitive brand in China
Company relies on strong technology research and development cooperation basis, created a number of advanced technology, in recent 3 years amounted to more than 30 to apply for a patent, which has nearly 10 patents of invention.
Equipped with the national electric power transformation and control engineering technology research center (branch), and has set up a loan enterprise academician workstation.
Strict implementation of ISO quality management system, and through the CE safety certification, has been implementing ERP management for many years, to achieve the network, systematic computer control, the formation of a standard, efficient modern management system.
» Qualification certification
Liyuan adhere to innovation and the continuous improvement of power conversion efficiency and product quality.
The increasing R&D investment every year, and cooperation with China’s well-known universities, we has established the research center of national electric power conversion and control engineering technology.
Especially the related core patents of high-power synchronous rectifier power supply, stay ahead of the whole industry in China.
The ISO 9001 quality management system has been fully implemented in Liyuan, including quality inspection of components in warehouse, production process inspection, and final product inspection.
We adopt advanced scientific quality management system and the most stringent testing methods in the whole process to ensure the stability and reliability of products.
» Service
› Packing
1)Small size rectifier packing in carton box separately.
2)Large size rectifier will be packed in wooden case.
3)We guarantee that all the packing is intact when it reaches its destination.
› Shipping
1)30-45 Days after payment.
2)Transport: DHL, FEDEX, UPS, Air shipping, Boat shipping
3)You may choose our shipping partner or your own partner.
› Maintenance
We are pleasant to share our theory and experience on equipment maintenance with users.
We are pleasant to interact with users to collect their tips and know-hows on equipment maintenance.
The module “Maintenance” here is intended to help users solve various problems they possibly encounter during equipment maintenance…
If you need other power electroplating rectifiers, we can custom design them according to customer requirements. Please contact us.
Seeking ±15V 12500A hard chrome plating rectifier power supply? Liyuan Haina Rectifier, a professional manufacturer with 27+ years specializing in industrial rectifiers, supplies global clients including the United States, Canada, Britain, Italy, Spain, South Africa, Russia, the UAE, Japan, South Korea, Malaysia, etc. Our advanced factory delivers cost-effective Made-in-China solutions, with competitive prices and customizable options. Contact us for sales inquiries.
