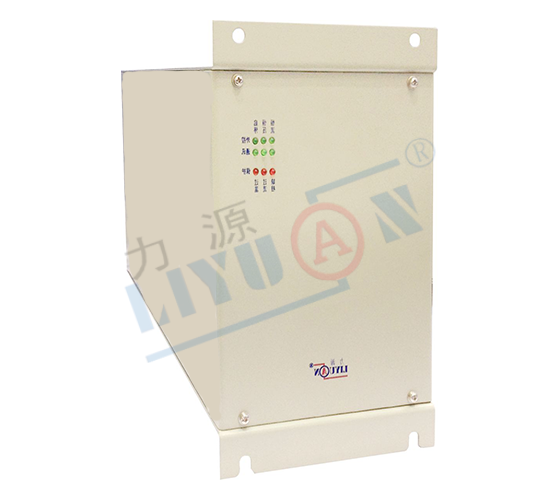

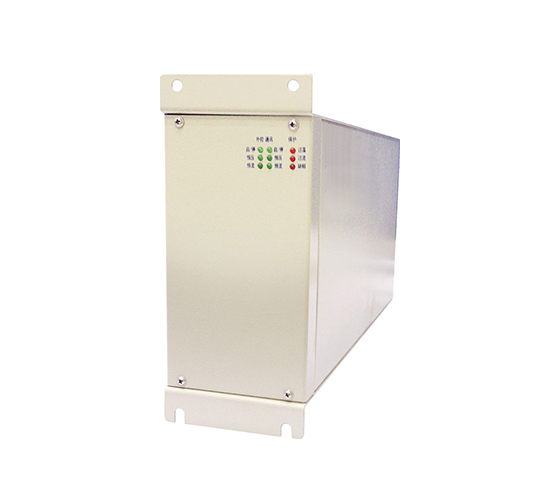

30A 5V Industrial High Power Rectifier Electroplating Industry

Input parameters: Single phase, AC220V±10% ,50HZ

Output parameters: DC 0~5V 0~30A

Output mode: Common DC output

Cooling method: Water cooling

Power supply type: IGBT-based power supply

Application Industry: Plating industry

Description

Electroplating is the process of applying a thin layer of other metals or alloys on the surface of certain metals by electrolysis. It is a process of applying a metal film to the surface of metals or other materials to prevent metal oxidation (such as rust), improve wear resistance, electrical conductivity, reflectivity, corrosion resistance (copper sulfate, etc.) and enhance aesthetics.

Types of plating

  1. Copper plating: priming, enhance the ability to adhere to the plating layer, and the ability to resist corrosion. (Copper is easy to oxidation, oxidation, copper green no longer conductive, so copper-plated products must do copper protection)
  2. Nickel plating: priming or appearance, to enhance the corrosion resistance and wear resistance, (where the chemical nickel for the modern process of wear resistance than chrome plating). (Note that many electronic products, such as DIN head, N head, no longer use nickel priming, mainly because nickel is magnetic, will affect the electrical properties inside the passive intermodulation)
  3. Gold plating: improve the conductive contact impedance, enhance signal transmission. (Gold is the most stable, but also the most expensive.)
  4. Palladium-nickel plating: improve the conductive contact impedance, enhance signal transmission, wear resistance than gold.
  5. Tin-lead plating: improve soldering ability, soon to be replaced by other substitutes (because of the lead content is now mostly changed to bright tin and mist tin plating).
  6. Silver plating: improve the conductive contact impedance, improve signal transmission. (Silver performance is the best, easy to oxidation, oxidation also conductive)

Elements of electroplating

  1. Cathode: the plated object, referring to various connector terminals.
  2. Anode: If it is soluble anode, it is the metal to be plated. If it is insoluble anode, most of them are precious metals (white gold, iridium oxide).
  3. Plating solution: plating solution containing ions of the metal to be plated.
  4. Plating tank: The tank that can bear and store the plating solution, generally considering strength, corrosion resistance, temperature resistance, etc.
  5. Rectifier: The equipment to provide DC power supply.
Technical Parameters

Characteristic Types

Parameter Items

Technical Requirements
Power Types  Power types High-frequency Power Supply
Model and specifications TBSBZ-30A/5V
Cooling mode Water-cooled
Switch tube type IGBT
Input Characteristics Rated Input Voltage Single phase, AC220V±10% ,50HZ
Rated Input Power 0.17KVA
Rated Input Current AC 0.26A
Input Power Factor COSΦ≥0.95
Output Characteristics Output Voltage DC  0~5V
Output Current DC  0~30A
Stabilized Current Precision ≤1%(Rated Current)
According to accuracy 0.1A,0.01V
Rated Output efficiency ≥91%
Environmental Conditions Installation site Indoor installations
Altitude ≤2000 meters
Ambient temperature -20℃~40℃
Relative humidity ≤90%
Control Mode Operating mode PLC, ADDA, Ethernet, RS485 and RS232
Weight Net weight About 16KG
External Dimension Height*Width*Depth H247mm×W100mm×D378mm
Protection Characteristics With over voltage, over current, overload, short circuit, overheating and other abnormal self-protection function
Optional models
Application Model Output Parameters
220V Single phase input HIFB-500A4V 4Vdc/500A
TBFBZ-600A4V 4Vdc/600A
HMFB-10A5V 5Vdc/10A
HMFB-20A5V 5Vdc/20A
TBFBZ-25A5V 5Vdc/25A
TBFBZ-400A5V 5Vdc/400A
HMFB-600A5V 5Vdc/600A
HMFB-800A5V 5Vdc/800A
HMFB-2A6V 6Vdc/2A
HMFB-3A6V 6Vdc/3A
HMFB-350A6V 6Vdc/350A
HMFB-5A6V 6Vdc/5A
HMFB-10A6V 6Vdc/10A
TBFB-50A6V 6Vdc/50A
HMFB-600A6V 6Vdc/600A
TBFBZ-1A9V 9Vdc/1A
TBFB-10A9V 9Vdc/10A
TBFBZ-20A9V 9Vdc/20A
