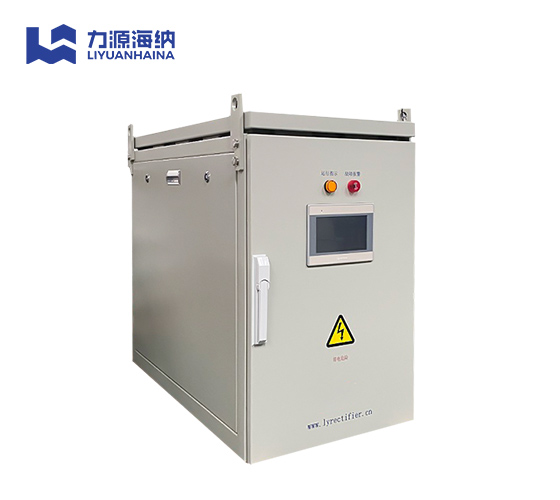

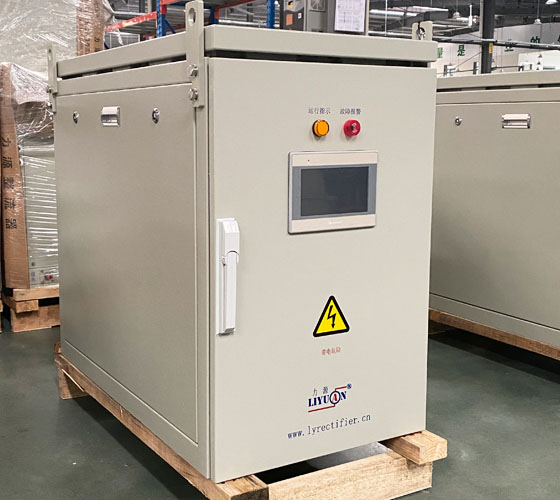

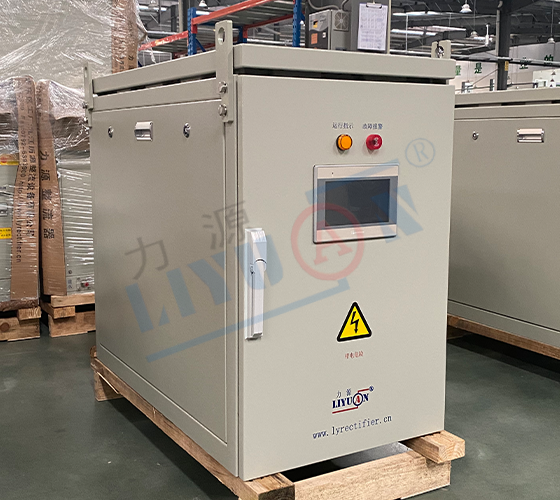

36V 4000A Electrolysis Rectifier For Rare Earth Smelting

Input parameters: Three phase, AC380V±10% ,50HZ

Output parameters: DC 0~36V 0~4000A

Output mode: Common DC output

Cooling method: Air cooling

Power supply type: AC arcing machines

Application Industry: Rear earth smelting and heating of the furnace body


Wet metallurgy is a chemical metallurgy method, the whole process is mostly in solution, solvent, such as the decomposition of rare earth concentrates, rare earth oxides, rare earth compounds, single rare earth metal separation and extraction process is the use of precipitation, crystallization, redox, solvent extraction, ion exchange and other chemical separation process. Now the more common application is organic solvent extraction method, which is a common process for industrial separation of high purity single rare earth elements. Wet metallurgy process is complex, the product purity is high, the production of finished products in this method is widely used.

Pyrometallurgical process is simple and has a high productivity. Rare earth pyrometallurgy mainly includes silicon thermal reduction method to produce rare earth alloys, molten salt electrolysis method to produce rare earth metals or alloys, and metal thermal reduction method to produce rare earth alloys. The common feature of pyrometallurgy is that it is produced under high temperature conditions.

The current industrial rare-earth electrolytic cell is small, the amount of electrolyte is small, and the process of starting the cell is relatively simple, generally the electrolyte is laid in the cell first, and then an AC arcing machine is used to connect the anode at one end and the graphite rod at the other end, and the arc is heated by short-circuiting the graphite block in the middle, so that the electrolyte melts and warms up to the specified temperature, and then the DC electrolysis can be passed. Large-scale rare-earth electrolytic cells have a large amount of electrolyte, and there are differences in the arrangement of the cell structure, and the bottom of the cell is permanently protected by materials that need to be protected during the arcing, so a new arcing method is needed to make the electrolyte of large cells melt and warm up to a specific temperature before the electrolysis can be started normally.

Technical Parameters

Characteristic Types

Parameter Items

Technical Requirements
Power Types  Power types AC arcing machines
Model and specifications TBSB-4000A/36V
Cooling mode Water-cooled
Switch tube type IGBT
Input Characteristics Rated Input Voltage Three-phase, AC380V±10% ,50HZ
Rated Input Power 169 KW
Rated Input Current Phase A, phase B current 446A, phase C 5A
Input Power Factor COSΦ≥0.95
Output Characteristics Output Voltage DC  0~36V
Output Current DC  0~4000A
Stabilized Current Precision ≤1%(Rated Current)
According to accuracy 1A,0.1V
Rated output  efficiency ≥94%
Environmental Conditions Installation site Indoor installations
Altitude ≤2000 meters
Ambient temperature -20℃~40℃
Relative humidity ≤94%
Control Mode Operating mode PLC, ADDA, Ethernet, RS485 and RS232
External Dimension Height*Width*Depth H1623mm×W850mm×D1350mm
Protection Characteristics With over voltage, over current, overload, short circuit, overheating and other abnormal self-protection function
Optional models
Application Model Output Parameters
Furnace body heating ACF-2000A/35V  35Vdc/2000A
ACF-3000A/24V  24Vdc/3000A
ACF-4000A/36V  36Vdc/4000A
TDSB-5000A/45V  45Vdc/5000A
TDSB-6000A/45V  45Vdc/6000A
TDSB-10000A/45V  45Vdc/10000A
TBSB-6000A/24V  24Vdc/6000A
TBSB-15KA/45V  45Vdc/15KA
Smelting TBSB-5000A/12V 12Vdc/5000A
TBSB-6000A/12V 12Vdc/6000A
TBSB-8000A/12V 12Vdc/8000A
TBSB-10000A/12V 12Vdc/10000A
TBSB-12000A/12V 12Vdc/12000A
TBSB-15000A/12V 12Vdc/15000A
TBSB-6000A/15V 15Vdc/6000A
TBSB-8000A/15V 15Vdc/8000A
TBSB-10000A/15V 15Vdc/10000A
TBSB-12000A/15V 15Vdc/12000A
TBSB-15000A/15V 15Vdc/15000A
TBSB-16000A/14V 14Vdc/16000A
TBSB-15000A/11V 11Vdc/15000A
TBSB-18000A/11V 11Vdc/18000A
TBSB-8000A/13V 13Vdc/8000A
