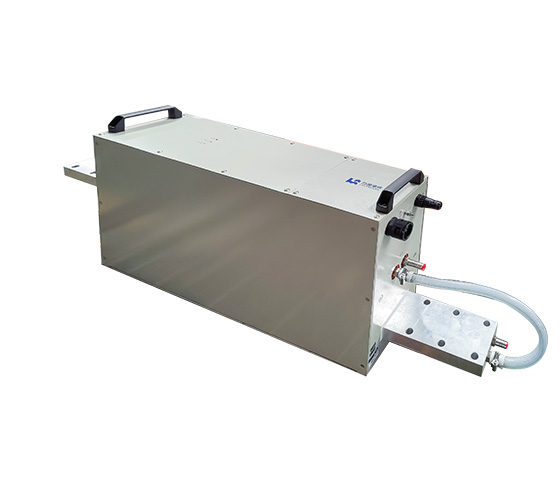

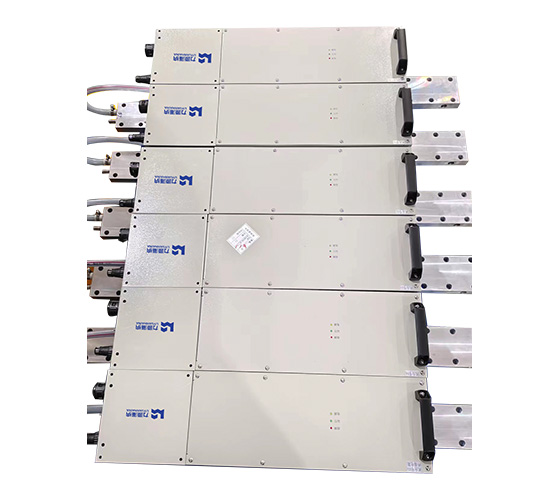

5000A 8V Copper Foil Electrolytic Rectifier Power Supply

Input parameters: Three phase, AC480V±10% ,60HZ

Output parameters: DC 0~8V 0~5000A

Cooling method: Water cooling

Power supply type: IGBT-based

Application Industry: Non-ferrous metal electrolysis, such as electrolytic Copper


Electrolysis is widely used in metallurgical industries, such as the extraction of metals from ores or compounds (electrolytic metallurgy) or the purification of metals (electrolytic purification), and the deposition of metals from solutions (electroplating). Electrolysis is a very powerful means of facilitating redox reactions, and many redox reactions that are difficult to carry out can be achieved by electrolysis. For example, molten fluoride can be oxidized to monomeric fluorine on the anode, and molten lithium salt can be reduced to lithium metal on the cathode. The electrolysis industry plays an important role in the national economy. The smelting of many non-ferrous metals (such as sodium, potassium, magnesium, aluminum, etc.) and rare metals (such as zirconium, hafnium, etc.) and the refining of metals (such as copper, zinc, lead, etc.), the preparation of basic chemical products (such as hydrogen, oxygen, caustic soda, potassium chlorate, hydrogen peroxide, ethylenedicarbonitrile, etc.), as well as electroplating, electropolishing, anodic oxidation, etc., are all realized by electrolysis.

Technical Parameters

Characteristic Types

Parameter Items

Technical Requirements
Power Types  Power types High-frequency Power Supply
Model and specifications TBSB-5000A/8V
Cooling mode Water-cooled
Switch tube type IGBT
Input Characteristics Rated Input Voltage Three-phase, AC480V±10% ,60HZ
Rated Input Power 44.8KW
Rated Input Current AC 53.9A
Input Power Factor COSΦ≥0.95
Output Characteristics Output Voltage DC  0~8V
Output Current DC  0~5000A
Stabilized Current Precision ≤1%(Rated Current)
According to accuracy 1A,0.01V
Rated Output efficiency ≥91%
Environmental Conditions Installation site Indoor installations
Altitude ≤2000 meters
Ambient temperature -20℃~40℃
Relative humidity ≤90%
Control Mode Operating mode PLC, ADDA, Ethernet, RS485 and RS232
Weight Net weight About 300KG
External Dimension Height*Width*Depth H188mm×W380×D700mm
Protection Characteristics With over voltage, over current, overload, short circuit, overheating and other abnormal self-protection function
Optional models
Model Input Output Dimension (mm)/L*W*H
TBSB-400A/12V Three Phase AC380V±10% 50HZ 12V/400A 500*343*183
TBSB-500A/12V Three Phase AC380V±10% 50HZ 12V/500A 460*310*185
TBSB-600A/12V Three Phase AC380V±10% 50HZ 12V/600A 500*343*183
TBSB-800A/5V Three Phase AC380V±10% 50HZ 5V/800A 460*310*185
TBSB-800A/6V Three Phase AC380V±10% 50HZ 6V/800A 460*310*185
TBSB-800A/12V Three Phase AC380V±10% 50HZ 12V/800A 780*350*180
TBSB-1000A/12V Three Phase AC380V±10% 50HZ 12V/1000A 644*330*192
TBSB-1000A/16V Three Phase AC380V±10% 50HZ 16V/1000A 620*310*180
TBSB-1000A/25V Three Phase AC380V±10% 50HZ 25V/1000A 700*352*185
TBSB-1000A/36V Three Phase AC380V±10% 50HZ 36V/1000A 700*352*185
TBSB-1000A/38V Three Phase AC380V±10% 50HZ 38V/1000A 780*365*187
TBSB-1200A/5V Three Phase AC380V±10% 50HZ 5V/1200A 580*342*185
TBSB-2000A/5V Three Phase AC380V±10% 50HZ 5V/2000A 780*310*180
TBSB-1800A/12V Three Phase AC380V±10% 50HZ 12V/1800A 780*310*180
TBSB-2500A/12V Three Phase AC380V±10% 50HZ 12V/2500A 1024*340*180
TBSB-3000A/12V Three Phase AC380V±10% 50HZ 12V/3000A 700*352*185
TBSB-3000A/15V Three Phase AC380V±10% 50HZ 15V/3000A 824*340*180
TBSB-4000A/10V Three Phase AC380V±10% 60HZ 10V/4000A 700*362*185
TBSB-4000A/15V Three Phase AC380V±10% 50HZ 15V/4000A 824*340*180
TBSB-5000A/7V Three Phase AC380V±10% 50HZ 7V/5000A 700*362*185
TBSB-5000A/15V Three Phase AC380V±10% 50HZ 15V/5000A 824*340*180
