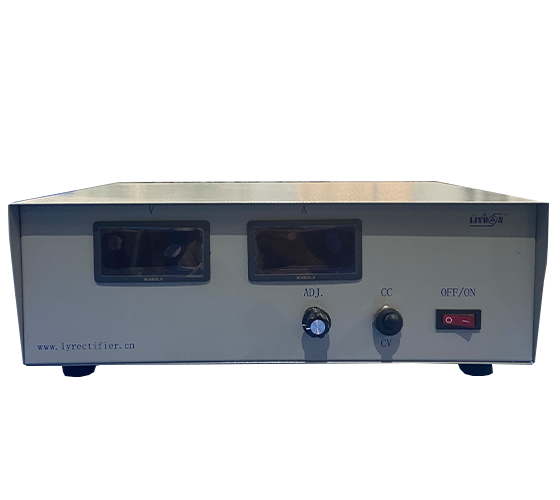

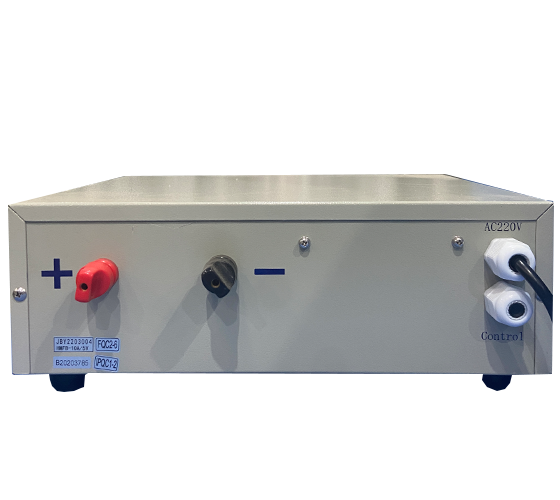

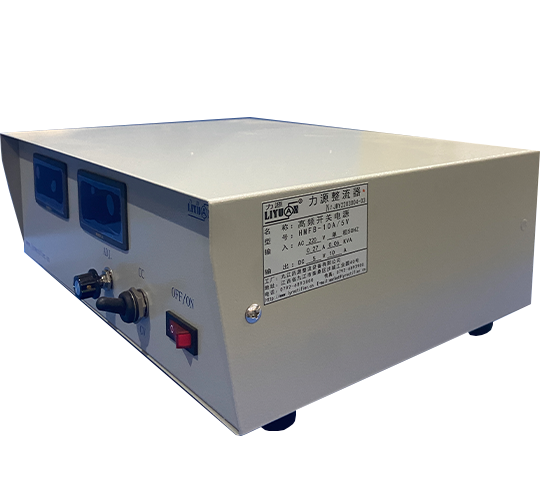

Input parameters: Three phase, AC220V±10% ,50HZ
Output parameters: DC 0~5V 0~10A
Output mode: Common DC output
Cooling method: Air cooling
Power supply type: IGBT-based
Application Industry: Surface treatment industry, such as gold plating
Electroplating is the process of applying a thin layer of other metals or alloys on the surface of certain metals by electrolysis. It is a process of applying a metal film to the surface of metals or other materials to prevent metal oxidation (such as rust), improve wear resistance, electrical conductivity, reflectivity, corrosion resistance (copper sulfate, etc.) and enhance aesthetics.
Gold plating is the process of coating the surface of another metal with gold to enhance its appearance. This process is commonly used by goldsmiths for making gold jewellery.
Characteristic Types |
Parameter Items |
Technical Requirements |
| Power Types | Power types | High-frequency Power Supply |
| Model and specifications | HMFB-10A/5V | |
| Cooling mode | Air-cooled | |
| Switch tube type | IGBT type | |
| Input Characteristics | Rated Input Voltage | Single phase, AC220V±10% ,50HZ |
| Rated Input Power | 0.06KW | |
| Rated Input Current | AC 0.25A | |
| Input Power Factor | COSΦ≥0.95 | |
| Output Characteristics | Output Voltage | DC 0～5V |
| Output Current | DC 0～10A | |
| Stabilized Current Precision | ≤1%（Rated Current) | |
| According to accuracy | 0.01A，0.01V | |
| Rated Output efficiency | ≥91% | |
| Environmental Conditions | Installation site | Indoor installations |
| Altitude | ≤2000 meters | |
| Ambient temperature | -20℃～40℃ | |
| Relative humidity | ≤90％ | |
| Control Mode | Operating mode | PLC, ADDA, Ethernet, RS485 and RS232 |
| Weight | Net weight | About 15KG |
| External Dimension | Height*Width*Depth | H188mm×W351mm×D454mm |
| Protection Characteristics | With over voltage, over current, overload, short circuit, overheating and other abnormal self-protection function | |
| Application | Model | Output Parameters |
| Surface treatment industry: Hard chrome plating, Copper plating, Zinc plating, Nickel plating, Gold plating, Silver plating, Metal plating, Jewelry plating. | TBFB-500A/5V | 5Vdc/500A |
| TBFB-600A/10V | 10Vdc/600A | |
| TBFB-1000A/10V | 10Vdc/1000A | |
| TBFB-1500A/10V | 10Vdc/1500A | |
| TBFB-5000A/15V | 15Vdc/5000A | |
| HISB-200A12V+E | 12Vdc/200A | |
| HISB-300A12V+E | 12Vdc/300A | |
| HISB-500A12V+E | 12Vdc/500A | |
| HISB-1000A8V+E | 8Vdc/1000A | |
| HISB-1000A12V+E | 12Vdc/1000A | |
| HISB-1500A12V+E | 12Vdc/1500A | |
| HISB-2500A12V+E | 12Vdc/2500A | |
| HISB-3000A12V+E | 12Vdc/3000A | |
| HISB-4000A12V+E | 12Vdc/4000A | |
| HISB-5000A12V+E | 12Vdc/5000A | |
| HISB-7000A12V+E | 12Vdc/7000A | |
| TBSB-8000A/12V | 12Vdc/8000A | |
| TBSB-4000A/12V | 12Vdc/4000A | |
| TBSB-8000A/12V | 12Vdc/8000A | |
| TBSB-3000A/12V | 12Vdc/3000A | |
| TBSB-400A/4V | 4Vdc/400A | |
| TBSB-800A/12V | 12Vdc/800A | |
| TBFA-4000A/12V | ±12Vdc/4000A | |
| HMFB-10A5V | 5Vdc/10A | |
| TBFA-2000A/12V | ±12Vdc/2000A | |
| TBFBZ-300A/5V | 5Vdc/300A | |
| TBFBZ-800A/5V | 5Vdc/800A | |
| TBFBZ-600A/6V | 6Vdc/600A | |
| TBSB-12KA/12V | 12Vdc/12KA | |
| TBSB-6000A/12V | 12Vdc/6000A | |
| TDSB-10KA100V | 100Vdc/10KA |
If you need other IGBT plating rectifier, we can custom design them according to customer requirements. Please contact us.
Seeking 0~5V 0~10A IGBT plating rectifier manufacturers? Liyuan Haina Group, a professional manufacturer with 27+ years specializing in industrial rectifiers, supplies global clients including the United States, Canada, Britain, Italy, Spain, South Africa, Russia, the UAE, Japan, South Korea, Malaysia, etc. Our advanced factory delivers cost-effective Made-in-China solutions, with competitive prices and customizable options. Contact us for sales inquiries.
