Input parameters: Three-phase AC 380V ± 10% 50Hz
In line with the national power quality standards
Output parameters: DC 780V 700A
Output mode: Common DC output
Cooling method: Air or Water cooling
Power supply type: Silicon controlled rectifier
Application Industry: Salt water, potassium salt electrolytic caustic soda, potassium alkali, sodium, potassium chloride electrolytic potassium chlorate, potassium permanganate.

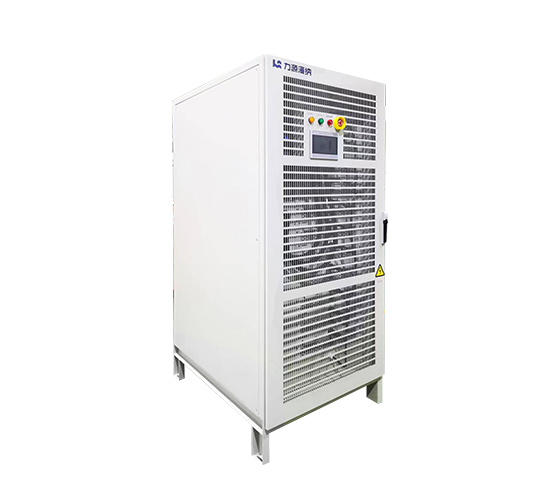

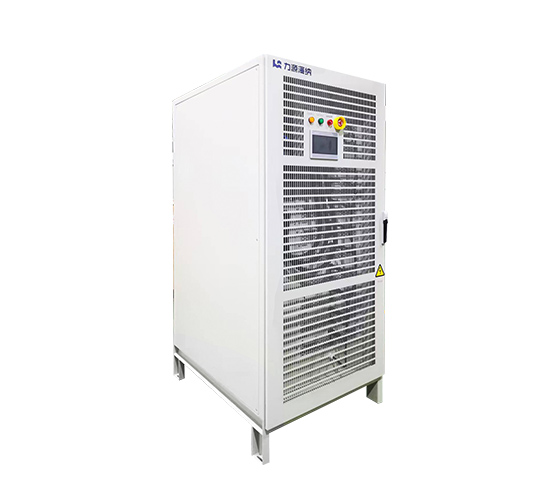

We designed this 700A 780V rectifier specifically for caustic soda electrolysis and other demanding processes requiring reliable high-voltage DC power.
Thanks to silicon carbide (SiC) components, it reaches efficiency levels around 96–97%, lowering your power consumption during long-term operation.
Each unit can supply up to 60kW, and offers both air and water cooling options to fit various industrial setups.
› Caustic soda (NaOH) production via ion membrane electrolysis
› Hydrogen and chlorine gas generation systems
› Electrochemical processing plants
› High-voltage DC power supply for industrial loads
› Modular Flexibility: Simplifies scaling up for large systems
› Energy Savings: Exceptional efficiency lowers operating costs

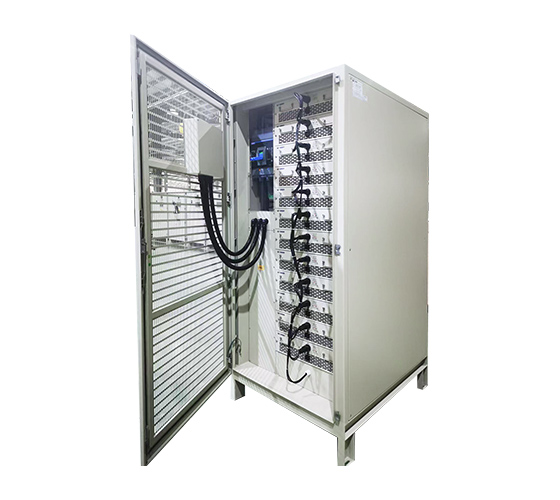

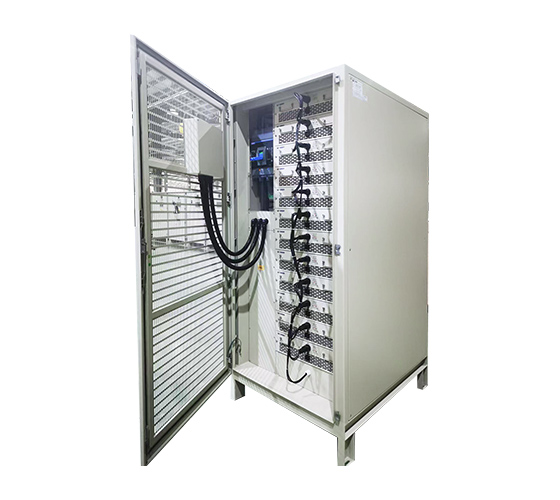

› Easy Maintenance: Modules can be replaced individually
› Thermal Flexibility: Works reliably in various cooling environments
› Better ROI: Lower total cost of ownership than SCR systems
Air Cooling:Heat dissipation fan + air duct + comb heat sin
Water Cooling：Built-in water circulation line
| Attribute type | Parameter items | Technical requirements | |
| Input characteristics | Rated input voltage | Three-phase AC 380V ± 10% 50Hz
In line with the national power quality standards
|
|
| Rated input current | AC 877A | ||
| Rated input power | 578KVA | ||
| Rated input power factor | COSΦ≥0.95 | ||
| Output characteristics | Output voltage | DC 780V adjustable | |
| Output current | DC 700A adjustable | ||
| Steady current precision | ≤1% | ||
| Steady voltage precision | ≤1% | ||
| Display accuracy | 1A, 0.01V | ||
| Rated output efficiency | ≥96% | ||
| Cooling Method | Air or Water Cooling | ||
| Insulation characteristics | Insulation resistance | Input-output: ≥ 5MΩ | |
| Input-chassis: ≥ 5MΩ | |||
| Output-chassis; ≥5MΩ | |||
| Protection characteristics | It has self-protection function under abnormal conditions such as overvoltage, overcurrent, overload, short circuit and overheat | ||
| Other characteristics | Noise | ≤75dB | |
| Operating status | Continuous full load operation of the product | ||
| Load grade | Grade II | ||
| Insulation grade of transformer | Class B | ||
» Solution
Liyuan will keep up with the world’s latest technology closely, and uphold the concept of providing customers with high-quality power supplies and professional integrated services.
With advanced design and rich experience in rectifier manufacturing, we will provide the best power solutions as well as the most stable and efficient power supply for users both at home and abroad.
» Technical Capability
LIYUAN rectifier is the most competitive brand in China
Company relies on strong technology research and development cooperation basis, created a number of advanced technology, in recent 3 years amounted to more than 30 to apply for a patent, which has nearly 10 patents of invention.
Equipped with the national electric power transformation and control engineering technology research center (branch), and has set up a loan enterprise academician workstation.
Strict implementation of ISO quality management system, and through the CE safety certification, has been implementing ERP management for many years, to achieve the network, systematic computer control, the formation of a standard, efficient modern management system.
» Qualification certification
Liyuan adhere to innovation and the continuous improvement of power conversion efficiency and product quality.
The increasing R&D investment every year, and cooperation with China’s well-known universities, we has established the research center of national electric power conversion and control engineering technology.
Especially the related core patents of high-power synchronous rectifier power supply, stay ahead of the whole industry in China.
The ISO 9001 quality management system has been fully implemented in Liyuan, including quality inspection of components in warehouse, production process inspection, and final product inspection.
We adopt advanced scientific quality management system and the most stringent testing methods in the whole process to ensure the stability and reliability of products.
» Service
› Packing
1)Small size rectifier packing in carton box separately.
2)Large size rectifier will be packed in wooden case.
3)We guarantee that all the packing is intact when it reaches its destination.
› Shipping
1)30-45 Days after payment.
2)Transport: DHL, FEDEX, UPS, Air shipping, Boat shipping
3)You may choose our shipping partner or your own partner.
› Maintenance
We are pleasant to share our theory and experience on equipment maintenance with users.
We are pleasant to interact with users to collect their tips and know-hows on equipment maintenance.
The module “Maintenance” here is intended to help users solve various problems they possibly encounter during equipment maintenance…
If you require caustic soda rectifiers in other specifications, we can customize the design to match your exact needs. Please feel free to contact us for more details.
