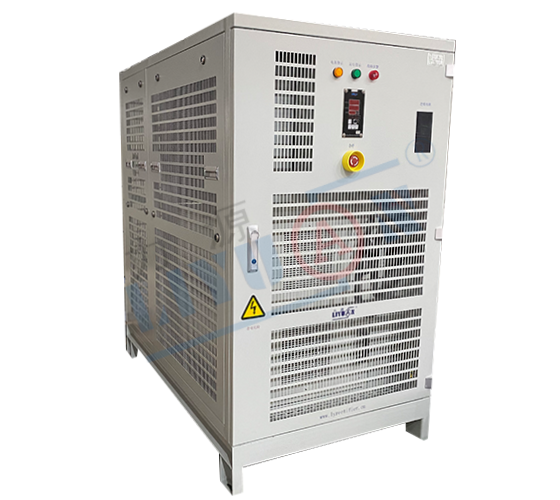

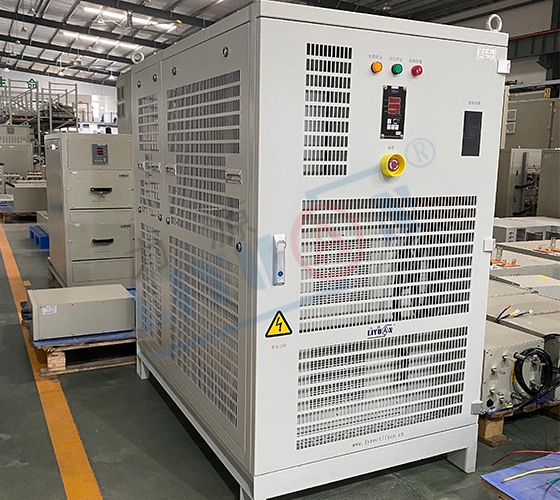

70V 4000A Anodizing Rectifier

Input parameters: Three phase, AC380V±10% ,50HZ

Output parameters: DC 0~70V 0~4000A

Output mode: Common DC output

Cooling method: Air cooling

Power supply type: IGBT-based power supply

Application Industry: Anodizing, Oxidation of aluminium profile

Description

Anodize oxidation includes both aluminum anodizing and hard anodizing. Anodize oxidation (anodize oxidation), electrochemical oxidation of metals or alloys. The process of forming a layer of oxide film on aluminum products (anodes) under the action of an applied current in aluminum and its alloys under the corresponding electrolyte and specific process conditions. The so-called anodize oxidation of aluminum is an electrolytic oxidation process in which the surface of aluminum and aluminum alloys is usually transformed into a layer of oxide film, which has protective, decorative and some other functional properties.

Aluminum oxidation coloring, using artificial methods to make aluminum and its alloy products surface to generate a layer of oxide film (Al2O3) and apply different colors, in order to improve the wear resistance of aluminum, prolong the service life and increase the color and beauty. The basic process of oxidation coloring is aluminum surface treatment, oxidation, coloring and subsequent hydration sealing, organic coating and other treatment processes. The coloring methods of oxide film are chemical coloring, electrolytic coloring and natural coloring, etc.

General decorative anodize oxidation requires dc power supply voltage is usually 20V-24V, hard anodize oxidation according to the process, the voltage is usually higher, sometimes up to 80V, 100V, 120V, etc., the current depends on the size of the anodized workpiece, from several hundred to tens of thousands of amperes. At present, the use of high frequency switching power supply as anodize oxidation rectifier has become a general trend, its advantages are shorter oxidation time, more energy saving, less space, lighter weight and more convenient maintenance.

Technical Parameters

Characteristic Types

Parameter Items

Technical Requirements
Power Types  Power types High-frequency Power Supply
Model and specifications TDFB-4000A/70V
Cooling mode Air-cooled
Switch tube type IGBT
Input Characteristics Rated Input Voltage Three-phase, AC380V±10% ,50HZ
Rated Input Power 327KVA
Rated Input Current AC 498A
Input Power Factor COSΦ≥0.95
Output Characteristics Output Voltage DC  0~70V
Output Current DC  0~4000A
According to accuracy 1A,0.1V
Rated Output efficiency ≥90%
Environmental Conditions Installation site Indoor installations
Altitude ≤2000 meters
Ambient temperature -20℃~45℃
Relative humidity ≤90%
Control Mode Operating mode PLC, ADDA, Ethernet, RS485 and RS232
External Dimension Height*Width*Depth H1945mm×W1700mm×D1400mm
Protection Characteristics With over voltage, over current, overload, short circuit, overheating and other abnormal self-protection function
Optional models
Application Model Output Parameters
Aluminum anodizing TBSB-2500A25V 25Vdc/2500A
TBSB-100A30V 30Vdc/100A
TBSB-1000A25V 25Vdc/1000A
TBSB-750A25V 25Vdc/750A
TBSB-700A40V 40Vdc/700A
TBSB-500A40V 40Vdc/500A
TBSB-300A50V 50Vdc/300A
TBSB-200A24V 24Vdc/200A
TBSB-100A40V 40Vdc/100A
TBSB-100A24V 24Vdc/100A
TBSB-50A20V 20Vdc/50A
TBSB-16KA22V 22Vdc/16KA
TBSB-14KA22V 22Vdc/14KA
TBSB-12KA22V 22Vdc/12KA
TBSB-16KA22V 22Vdc/16KA
TBSB-12KA22V 22Vdc/12KA
TBSB-1000A15V 15Vdc/1000A
TBSB-18KA25V 25Vdc/18KA
TBSB-12KA20V 20Vdc/12KA
TBSB-20KA150V 150Vdc/20KA
KGFB-2000A20V 20Vdc/2000A
KGSB-50KA1000V 1000Vdc/50KA
TBSB-22KA22V 22Vdc/22KA
KGFB-1500A/80V 80Vdc/1500A
TBSB-15KA/22V 22Vdc/15KA
KGSB-4KA250V 250Vdc/4KA
TBSB-24KA/22V 22Vdc/24KA
Colouring DC/AC-500A/30V DC/AC-500A/30Vdc
DC/AC-12KA25V DC/AC-12KA25Vdc
