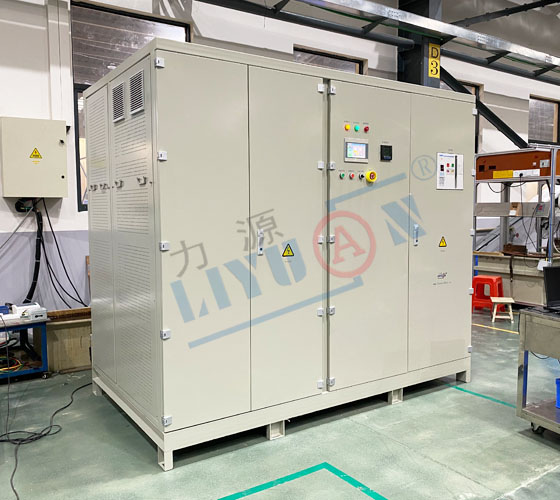

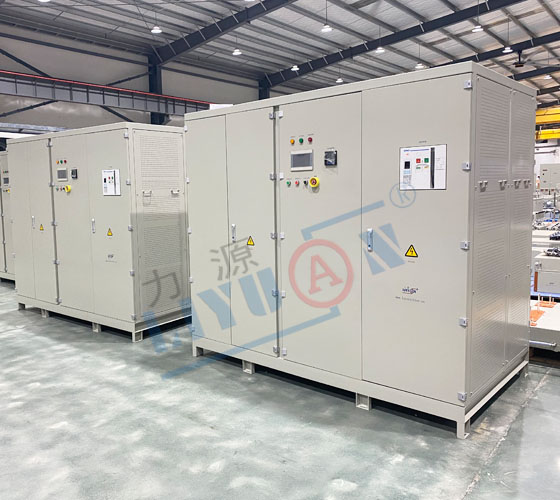

100V 10KA high power industrial plating rectifier

Input parameters:Three phase AC380V±10%, 50~60HZ

Output parameters: DC 0~100V 0~10KA

Output mode: Common DC output

Cooling method:Water cooling

Power supply type: IGBT-based

Application Industry: Plating industry

Description

Electroplating is the process of applying a thin layer of other metals or alloys on the surface of certain metals by electrolysis. It is a process of applying a metal film to the surface of metals or other materials to prevent metal oxidation (such as rust), improve wear resistance, electrical conductivity, reflectivity, corrosion resistance (copper sulfate, etc.) and enhance aesthetics.

Types of plating:

  1. Copper plating: priming, enhance the ability to adhere to the plating layer, and the ability to resist corrosion. (Copper is easy to oxidation, oxidation, copper green no longer conductive, so copper-plated products must do copper protection)
  2. Nickel plating: priming or appearance, to enhance the corrosion resistance and wear resistance, (where the chemical nickel for the modern process of wear resistance than chrome plating). (Note that many electronic products, such as DIN head, N head, no longer use nickel priming, mainly because nickel is magnetic, will affect the electrical properties inside the passive intermodulation)
  3. Gold plating: improve the conductive contact impedance, enhance signal transmission. (Gold is the most stable, but also the most expensive.)
  4. Palladium-nickel plating: improve the conductive contact impedance, enhance signal transmission, wear resistance than gold.
  5. Tin-lead plating: improve soldering ability, soon to be replaced by other substitutes (because of the lead content is now mostly changed to bright tin and mist tin plating).
  6. Silver plating: improve the conductive contact impedance, improve signal transmission. (Silver performance is the best, easy to oxidation, oxidation also conductive)

Elements of electroplating:

  1. Cathode: the plated object, referring to various connector terminals
  2. Anode: If it is soluble anode, it is the metal to be plated. If it is insoluble anode, most of them are precious metals (white gold, iridium oxide).
  3. Plating solution: plating solution containing ions of the metal to be plated.
  4. Plating tank: The tank that can bear and store the plating solution, generally considering strength, corrosion resistance, temperature resistance, etc.
  5. Rectifier: The equipment to provide DC power supply.
Technical Parameters

Characteristic Types

Parameter Items

Technical Requirements
Power Types  Power types High-frequency Power Supply
Model and specifications TDSB-10KA/100V
Cooling mode Water-cooled
Switch tube type IGBT
Input Characteristics Rated Input Voltage Three-phase, AC380V±10% ,50HZ
Rated Input Power 1111 KW
Rated Input Current AC 1688A
Input Power Factor COSΦ≥0.95
Output Characteristics Output Voltage DC  0~100V
Output Current DC  0~10KA
Stabilized Current Precision ≤1%(Rated Current)
According to accuracy 1A,0.01V
Rated Output efficiency ≥90%
Environmental Conditions Installation site Indoor installations
Altitude ≤1500 meters
Ambient temperature -20℃~40℃
Relative humidity ≤90%
Control Mode Operating mode PLC, ADDA, Ethernet, RS485 and RS232
Other Composition A TDSB-10000A/100V power supply consists of 24 TDSB-440A/100V power supplies in parallel
External Dimension Height*Width*Depth H2200mm×W2500mm×D1450mm
Protection Characteristics With over voltage, over current, overload, short circuit, overheating and other abnormal self-protection function

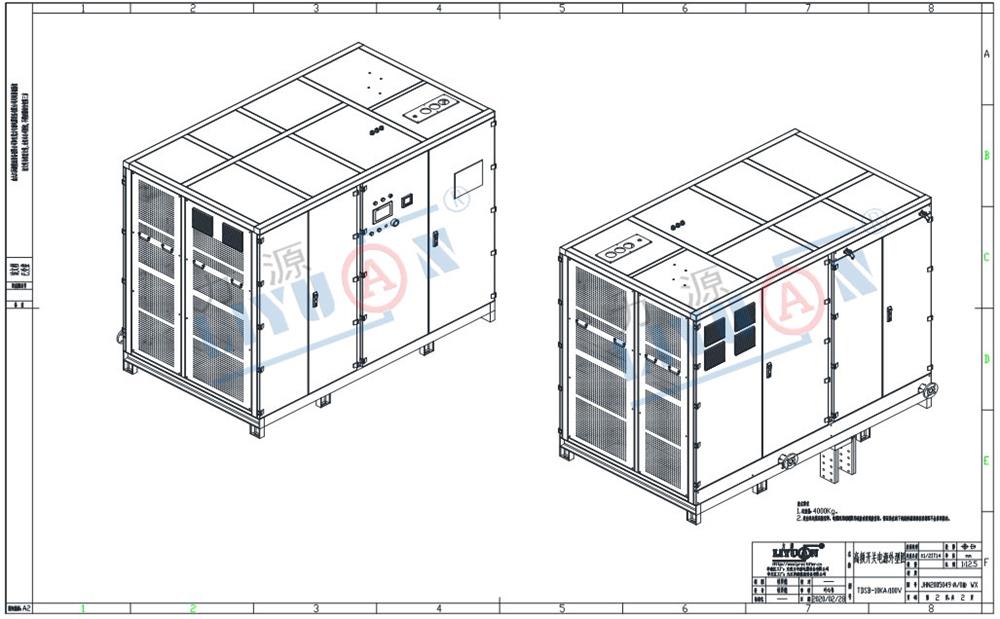

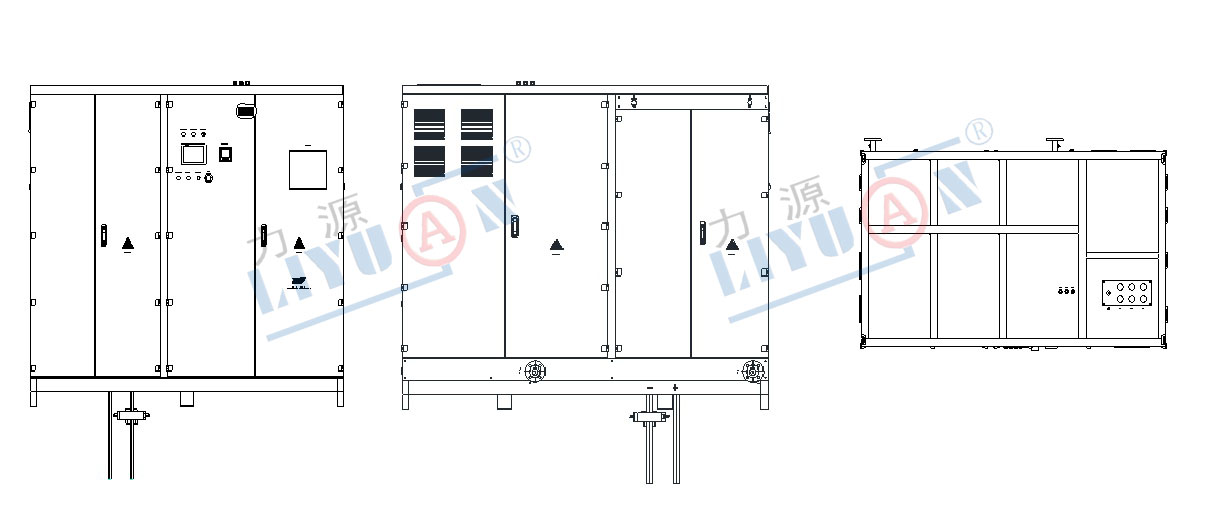

Main Structure

Optional models
Model Input Output Dimension (H*W*L)/mm
TDSB-9000A/38V Three phase AC380V±10% 50HZ DC  0~38V  DC  0~9000A 1640×1250×1300
TDSB-6000A/50V Three phase AC380V±10% 50HZ DC  0~50V  DC  0~6000A 2040×680×898
TDSB-2000A/70V Three phase AC380V±10% 50HZ DC  0~70V  DC  0~2000A 1875×1280×1300
TDSB-1500A/80V Three phase AC380V±10% 50HZ DC  0~80V  DC  0~1500A 1015×620×1098
TDSB-700A/40V Three phase AC380V±10% 50HZ DC  0~40V  DC  0~700A 180×310×799
TDSB-200A/150V Three phase AC380V±10% 50HZ DC  0~150V  DC  0~200A 285×434×750
TDSB-10000A/100V Three phase AC380V±10% 50HZ DC  0~100V  DC  0~10000A 2200×2500×1450
TDSB-8KA/30V Three phase AC380V±10% 60HZ DC  0~30V  DC  0~8000A 2055×1480×1480
TDSB-3KA/30V Three phase AC380V±10% 60HZ DC  0~30V  DC  0~3000A 2055×1780×1230
TDSB-300A/30V Three phase AC380V±10% 50HZ DC  0~30V  DC  0~300A 180×310×799
TDSB-6000A/50V Three phase AC380V±10% 50HZ DC  0~50V  DC  0~6000A 2100×800×1180
TDSB-2000A/70V Three phase AC380V±10% 50HZ DC  0~70V  DC  0~2000A 1425×620×1098
TDSB-5000A/45V Three phase AC380V±10% 50HZ DC  0~45V  DC  0~5000A 1675×650×898
TDSB-500A/50V Three phase AC380V±10% 50HZ DC  0~50V  DC  0~500A 180×310×700
TDSB-1000A/60V Three phase AC380V±10% 50HZ DC  0~60V  DC  0~1000A 1015×620×1098
TDSB-1000A/40V Three phase AC380V±10% 50HZ DC  0~40V  DC  0~1000A 180×387×972
TDSB-500A/40V Three phase AC380V±10% 50HZ DC  0~40V  DC  0~500A 180×310×799
TDSB-650A/30V Three phase AC380V±10% 50HZ DC  0~30V  DC  0~650A 180×310×700
TDSB-200A/160V Three phase AC380V±10% 50HZ DC  0~160V  DC  0~200A 285×434×750
TDSB-200A/120V Three phase AC380V±10% 50HZ DC  0~120V  DC  0~200A 285×434×750
TDSB-400A/24V Three phase AC380V±10% 50HZ DC  0~24V  DC  0~400A 180×310×700
TDSB-200A/24V Three phase AC380V±10% 50HZ DC  0~24V  DC  0~200A 180×310×460
TDSB-3KA/20V Three phase AC380V±10% 60HZ DC  0~20V  DC  0~3000A 2055×1780×1230
TDSB-1000A/30V Three phase AC380V±10% 50HZ DC  0~30V   DC  0~1000A 180×310×664
Can be customized according to requirements
