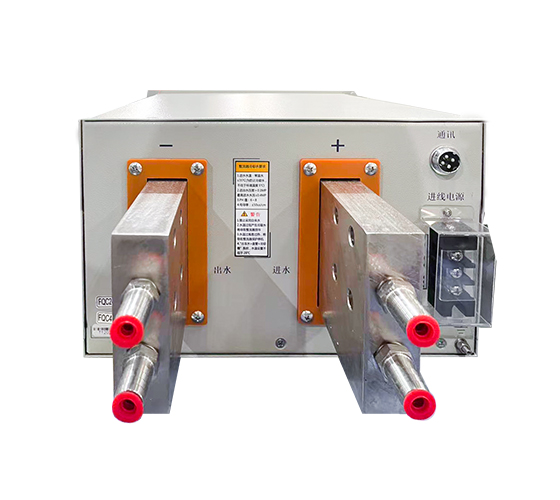

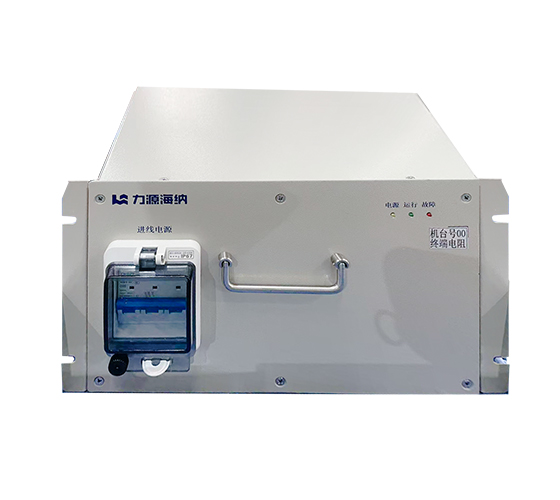

Industrial 8V 800A Rectifier for PCB Electroplating

In the PCB manufacturing process, electroless copper plating is an important step. It is widely used in the following two processes. One is plating onto bare laminate and the other is plating through hole, because under these two circumstances, electroplating cannot or can hardly be carried out. In the process of plating onto bare laminate, electroless copper plating plates a thin layer of copper on the bare substrate to make the substrate conductive for further electroplating. In the process of plating through hole, electroless copper plating is used to make the inner walls of the hole conductive to connect the printed circuits in different layers or the pins of the integrated chips.

The principle of electroless copper deposition is to use the chemical reaction between a reducing agent and a copper salt in a liquid solution so that the copper ion can be reduced to a copper atom. The reaction should be continuous so that sufficient copper can form a film and cover the substrate.

This series of rectifier is special designed for PCB Naked layer copper plating, adopt small size to optimized the installation space, the low and high current can be controlled by automated switching, the air cooling used independent enclosed air duct, synchronous rectification and energy saving, these features ensure high precision, stable performance and reliability.

TBFBZ series air-cooled

The use of synchronous rectification has obvious advantages in energy saving

• *Plug-in design facilitates maintenance and simple wiring
• *High stability, high reliability, multi-loop control system
• *Small product size, full digital RS485 network communication with optional WIFI function
• *Adopting independent air duct structure to improve the anti-corrosion performance of the whole machine and extend the service life of the power supply

Liyuan Haina’s main products in the power supply field of the PCB industry include: TB series synchronous rectification high-frequency switching power supply, TBFBG series high-precision MSAP dedicated power supply (AC-DC-DC mode),high-speed positive and negative pulse power supply (independent split mode, multiple Any combination of outputs), TB series dual output, four output, all-in-one computer, TB tablet computer series; distributed sub-module DC pulse power supply series; dot matrix intensive small power supply series; multiple communication control methods optional; air cooling Water cooling is optional; the overall performance is stable, energy-saving effciency is high, and the size is small. It has aunique installation mode that is highly optimized for the same equipment; it has the comprehensive characteristics of improving the uniformity and depth of electroplating and optimizing process characteristics.

If you need other IGBT electroplating rectifier, we can custom design them according to customer requirements. Please contact us.
