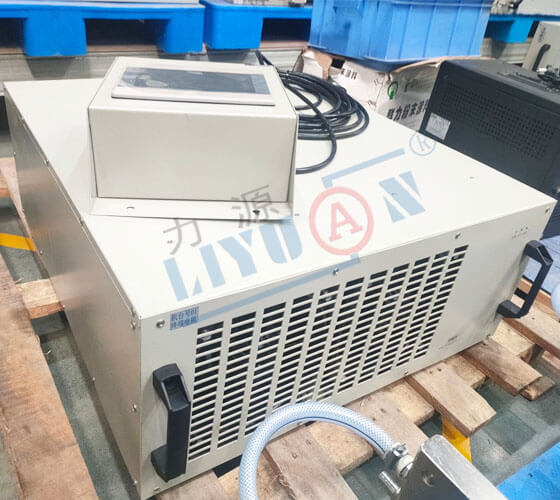

±12V 2000A polarity switch electroplating rectifier

Input parameters: Three phase AC380V±10%, 50HZ

Output parameters: DC +12V 2000A / -12V 2000A

Output mode: Polarity reversing

Cooling method: Air cooling

Power supply type: IGBT-based

Application Industry: Plating industry, such as chrome plating

Description

Types of plating:

Copper plating: priming, enhance the ability to adhere to the plating layer, and the ability to resist corrosion. (Copper is easy to oxidation, oxidation, copper green no longer conductive, so copper-plated products must do copper protection)

Nickel plating: priming or appearance, to enhance the corrosion resistance and wear resistance, (where the chemical nickel for the modern process of wear resistance than chrome plating). (Note that many electronic products, such as DIN head, N head, no longer use nickel priming, mainly because nickel is magnetic, will affect the electrical properties inside the passive intermodulation)

Gold plating: improve the conductive contact impedance, enhance signal transmission. (Gold is the most stable, but also the most expensive)

Palladium-nickel plating: improve the conductive contact impedance, enhance signal transmission, wear resistance than gold.

Tin-lead plating: improve soldering ability, soon to be replaced by other substitutes (because of the lead content is now mostly changed to bright tin and mist tin plating).

Silver plating: improve the conductive contact impedance, improve signal transmission. (Silver performance is the best, easy to oxidation, oxidation also conductive)

Plated Products

Elements of electroplating:

1. Cathode: the plated object, referring to various connector terminals
2. Anode: If it is soluble anode, it is the metal to be plated. If it is insoluble anode, most of them are precious metals (white gold, iridium oxide).
3. Plating solution: plating solution containing ions of the metal to be plated.
4. Plating tank: The tank that can bear and store the plating solution, generally considering strength, corrosion resistance, temperature resistance, etc.
5. Rectifier: The equipment to provide DC power supply.

Technical Parameters

Characteristic Types

Parameter Items

Technical Requirements
Power Types  Power types High-frequency Power Supply
Model and specifications TBFA-2000A/±12V
Cooling mode Air-cooled
Switch tube type IGBT
Input Characteristics Rated Input Voltage Three-phase, AC380V±10% ,50HZ
Rated Input Power 27.8KVA
Rated Input Current AC 42.2A
Input Power Factor COSΦ≥0.95
Output Characteristics Output Voltage DC  0~12V
Output Current DC  0~2000A
Stabilized Current Precision ≤1%(Rated Current)
According to accuracy 1A,0.01V
Rated Output efficiency ≥91%
Environmental Conditions Installation site Indoor installations
Altitude ≤2000 meters
Ambient temperature -20℃~40℃
Relative humidity ≤90%

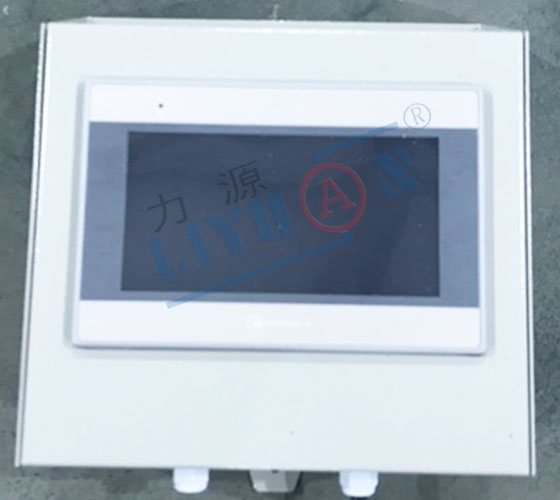

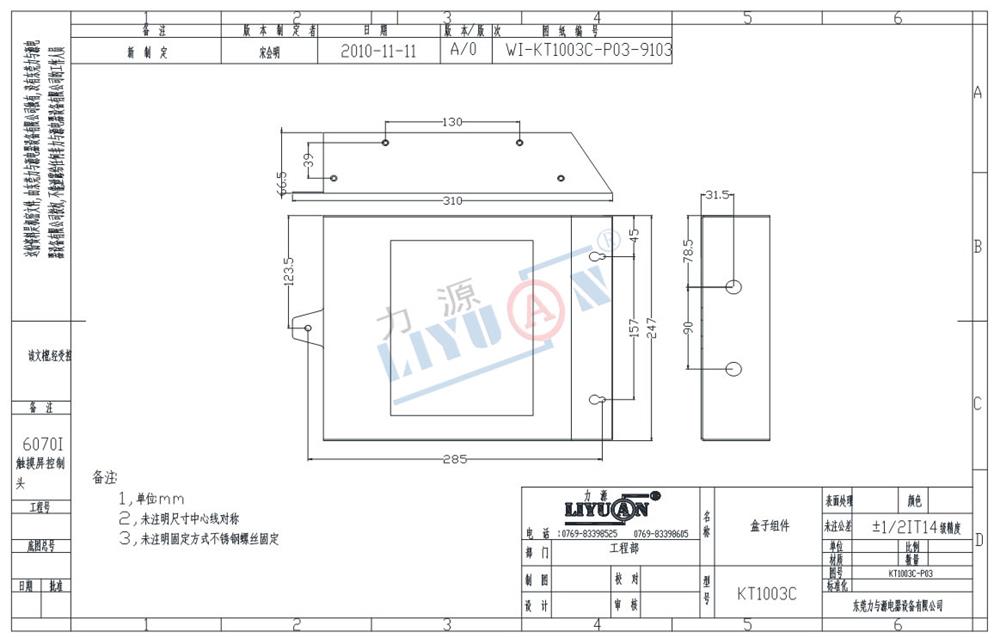

Control Mode Operating mode PLC, ADDA, Ethernet, RS485 and RS232
Other Power unit  Use a single 2000A/12V power supply
External Dimension Height*Width*Depth H270mm×W693mm×D934mm
Protection Characteristics  Self-protective function under the abnormal situations such as over/Low-voltage, over-current, default phase,short circuit, overheating and so on
Main Structure

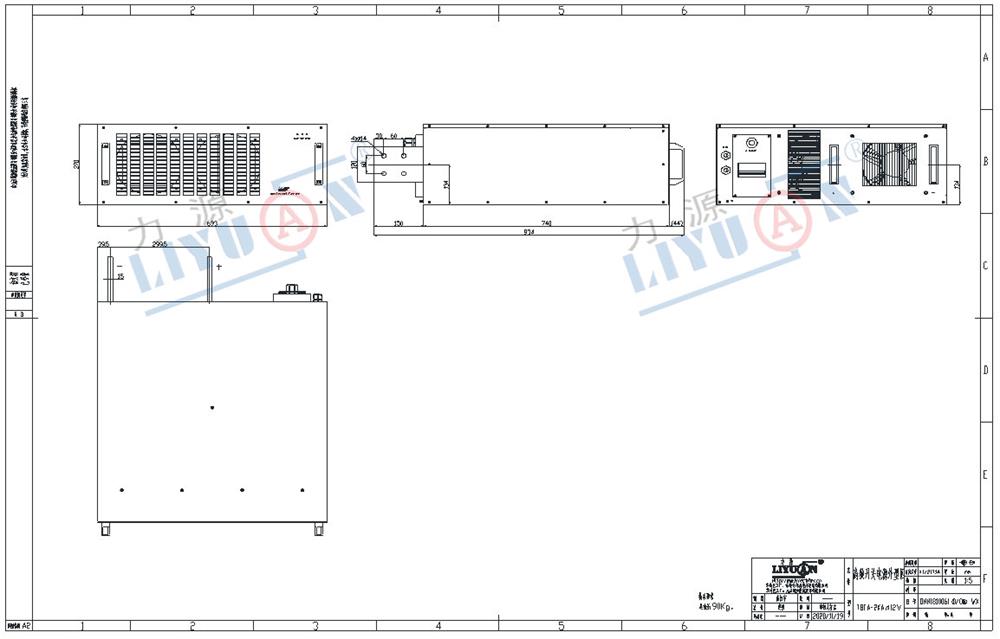

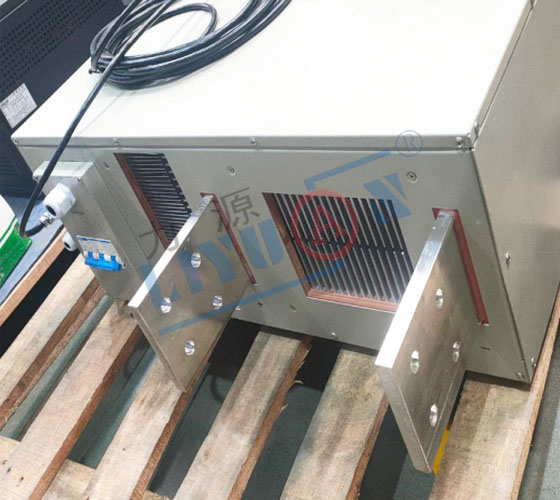

The main structure of the polarity switch electroplating rectifier

The main structure of the polarity switch electroplating rectifier

Optional models
Model Input Output Dimension (H*W*L)/mm
TBFA-500A/±12V Three phaseAC380V±10% 50HZ DC 0~±12V  DC 0~±500A 485×210×460
TBFA-10KA±15V Three phaseAC380V±10% 50HZ DC 0~±15V  DC 0~±10KA 2000×1200×1050
TBFA-6000A/±12V Three phaseAC380V±10% 50HZ DC 0~12V  DC 0~6KA 1510×920×900
TBFA-180A/±150V Three phaseAC380V±10% 50 HZ DC 0~±150V  DC 0~180A 2200×800×1000
TBFA-2500A/±15V Three phaseAC380V±10% 50HZ DC 0~±15V  DC 0~±2500A 485×265×768
TBFA-30A/12V Single phaseAC220V±10% 50HZ DC 0~±12V  DC 0~±30A 238×330×551
TBFAT-2500A±15V Three phaseAC380V±10% 50HZ DC 0~±15V  DC 0~±2500A 500×616×900
TBFA-800A/±12V Three phaseAC380V±10% 50HZ DC 0~±12V  DC 0~±800A 485×210×460
TBFA-8000A±15V Three phaseAC380V±10% 50HZ DC 0~±15V  DC 0~±8000A 2160×2000×1300
TBFA-10KA±15V Three phaseAC380V±10% 50HZ DC 0~±15V  DC 0~±10KA 2000×1200×1050
Can be customized according to requirements
