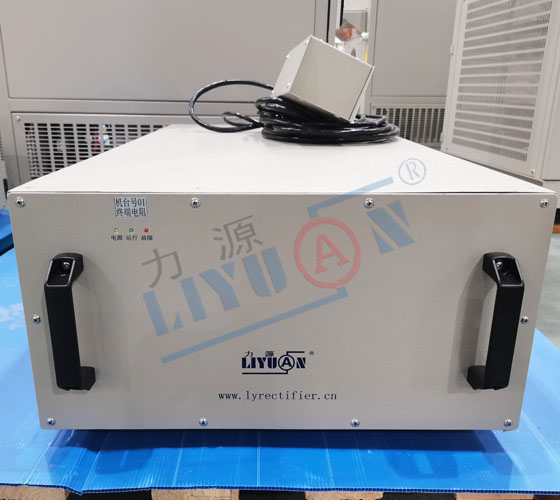

12V 4000A power supply for chrome plating

Input parameters:Three phase AC380V±10%, 50~60HZ

Output parameters: DC 0~12V 0~5000A

Output mode: Common DC output

Cooling method:Water cooling

Power supply type: IGBT-based

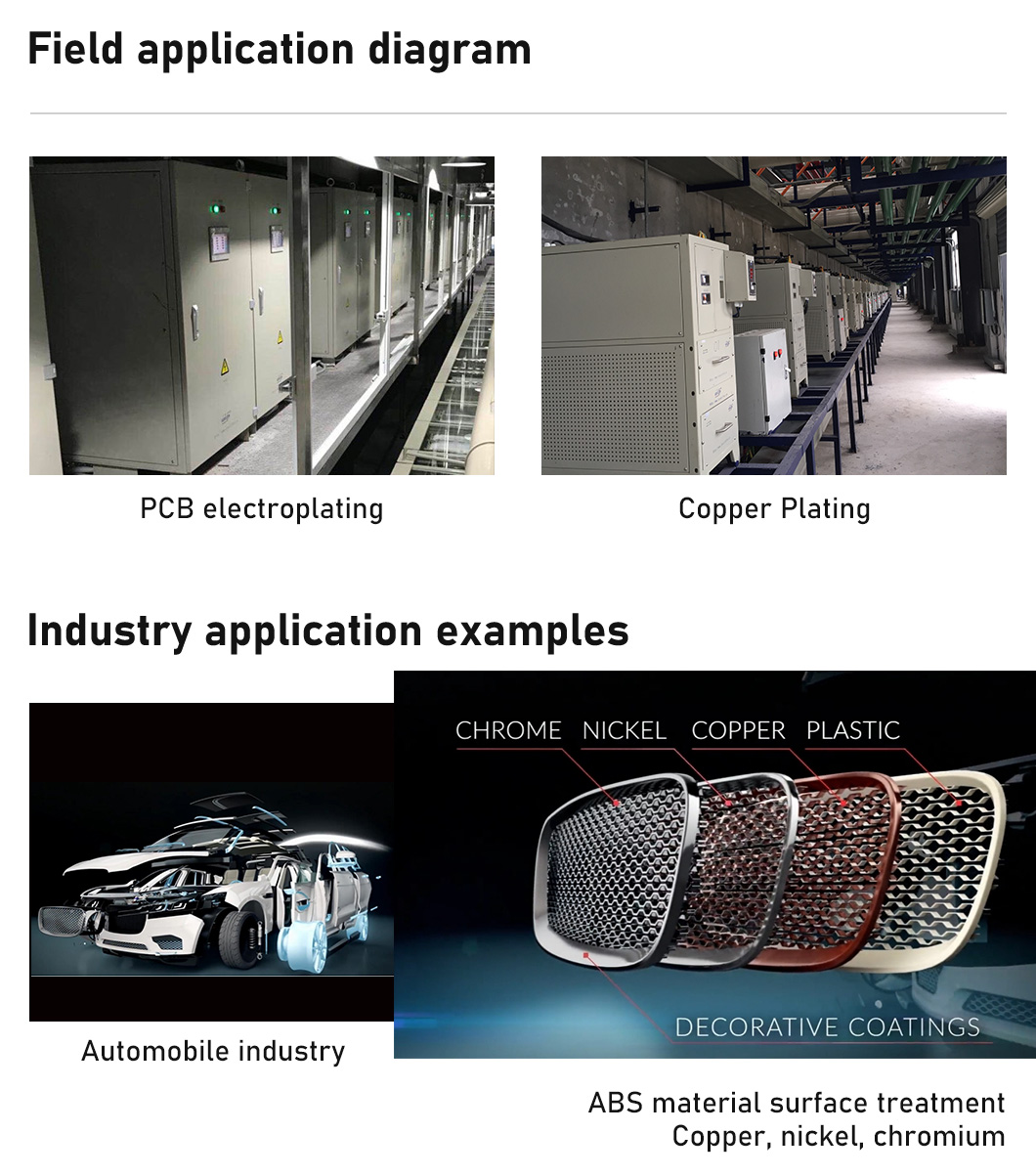

Application Industry: Surface treatment industry, such as chrome plating

Description

Types of plating:

Copper plating: priming, enhance the ability to adhere to the plating layer, and the ability to resist corrosion. (Copper is easy to oxidation, oxidation, copper green no longer conductive, so copper-plated products must do copper protection)

Nickel plating: priming or appearance, to enhance the corrosion resistance and wear resistance, (where the chemical nickel for the modern process of wear resistance than chrome plating). (Note that many electronic products, such as DIN head, N head, no longer use nickel priming, mainly because nickel is magnetic, will affect the electrical properties inside the passive intermodulation)

Gold plating: improve the conductive contact impedance, enhance signal transmission. (Gold is the most stable, but also the most expensive)

Palladium-nickel plating: improve the conductive contact impedance, enhance signal transmission, wear resistance than gold.

Tin-lead plating: improve soldering ability, soon to be replaced by other substitutes (because of the lead content is now mostly changed to bright tin and mist tin plating).

Silver plating: improve the conductive contact impedance, improve signal transmission. (Silver performance is the best, easy to oxidation, oxidation also conductive)

Elements of electroplating:

1. Cathode: the plated object, referring to various connector terminals
2. Anode: If it is soluble anode, it is the metal to be plated. If it is insoluble anode, most of them are precious metals (white gold, iridium oxide).
3. Plating solution: plating solution containing ions of the metal to be plated.
4. Plating tank: The tank that can bear and store the plating solution, generally considering strength, corrosion resistance, temperature resistance, etc.
5. Rectifier: The equipment to provide DC power supply.

Technical Parameters

Characteristic Types

Parameter Items

Technical Requirements
Power Types  Power types High-frequency Power Supply
Model and specifications TBSB-4000A/12V
Cooling mode Water-cooled
Switch tube type IGBT
Input Characteristics Rated Input Voltage Three-phase, AC380V±10% ,50~60HZ
Rated Input Power 67.2KW
Rated Input Current AC 102A
Input Power Factor COSΦ≥0.95
Output Characteristics Output Voltage DC  0~12V
Output Current DC  0~4000A
Stabilized Current Precision ≤1%(Rated Current)
According to accuracy 1A,0.01V
Rated Output efficiency ≥94%
Environmental Conditions Installation site Indoor installations
Altitude ≤1500 meters
Ambient temperature -20℃~40℃
Relative humidity ≤90%

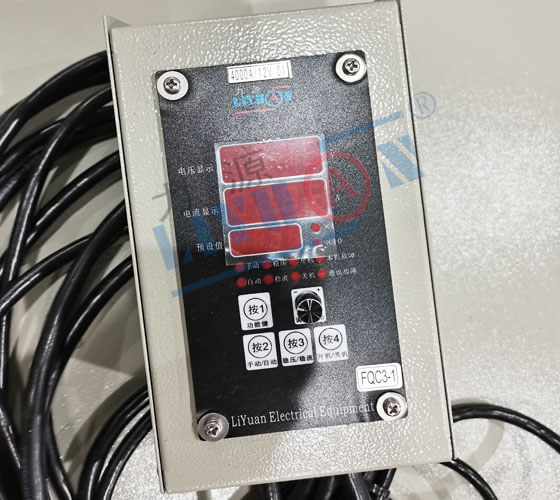

Control Mode Operating mode PLC, ADDA, Ethernet, RS485 and RS232
Other Weight About 30KG
External Dimension Height*Width*Depth H775mm×W380mm×D638mm
Protection Characteristics With over voltage, over current, overload, short circuit, overheating and other abnormal self-protection function

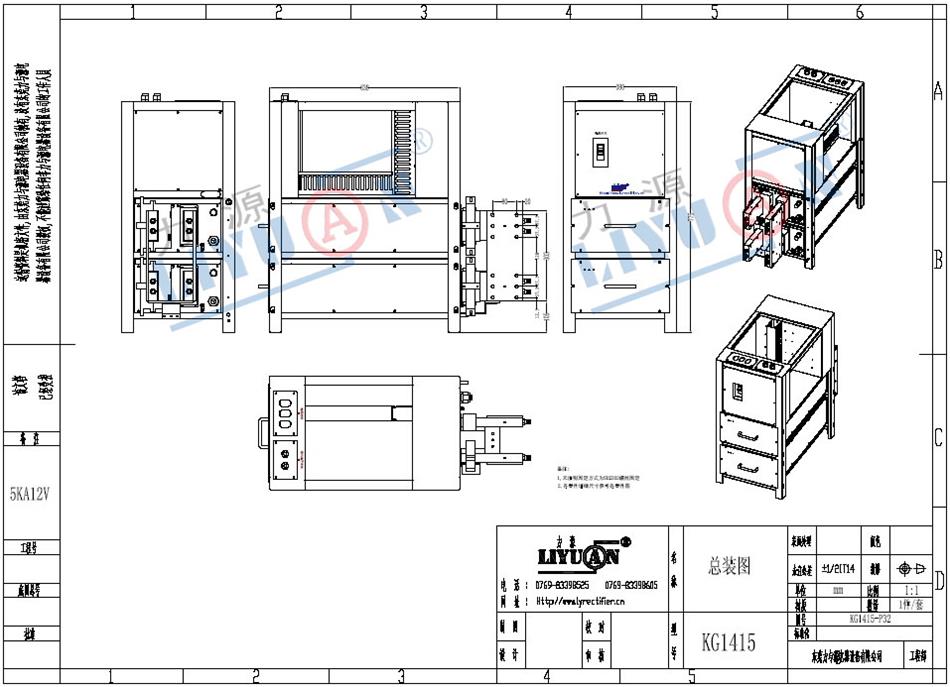

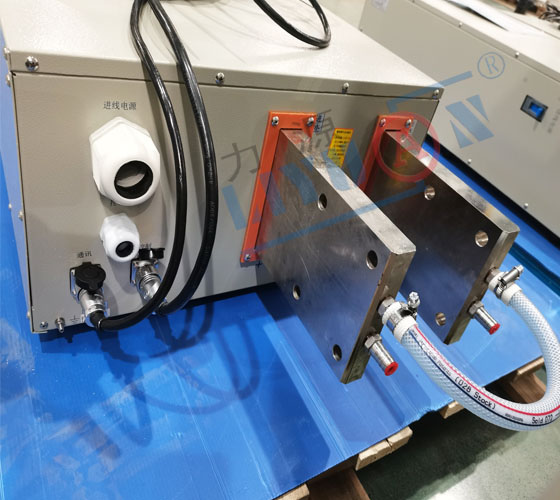

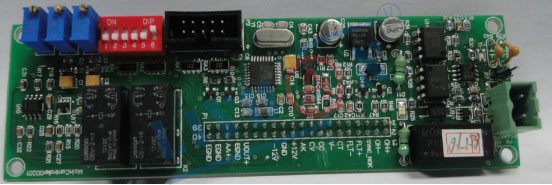

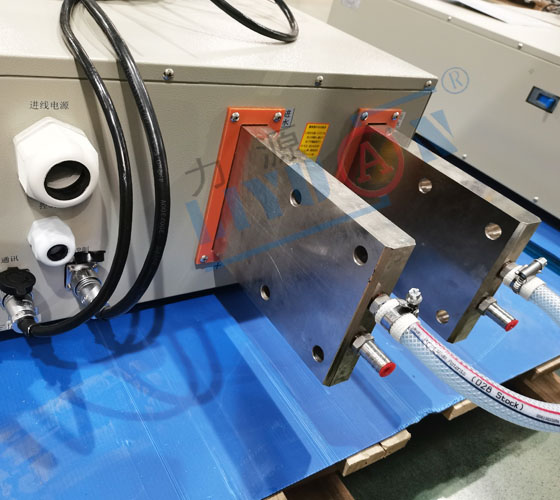

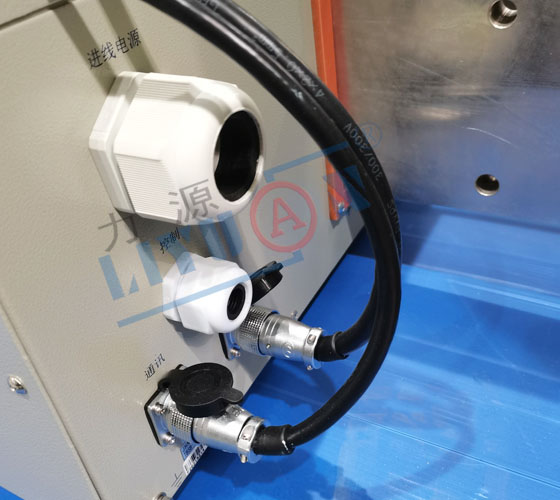

Main Structure



Optional models
Model Input Output Dimension (mm)/L*W*H
TBSB-400A/12V Three Phase AC380V±10% 50HZ 12V/400A 500*343*183
TBSB-500A/12V Three Phase AC380V±10% 50HZ 12V/500A 460*310*185
TBSB-600A/12V Three Phase AC380V±10% 50HZ 12V/600A 500*343*183
TBSB-800A/5V Three Phase AC380V±10% 50HZ 5V/800A 460*310*185
TBSB-800A/6V Three Phase AC380V±10% 50HZ 6V/800A 460*310*185
TBSB-800A/12V Three Phase AC380V±10% 50HZ 12V/800A 780*350*180
TBSB-1000A/12V Three Phase AC380V±10% 50HZ 12V/1000A 644*330*192
TBSB-1000A/16V Three Phase AC380V±10% 50HZ 16V/1000A 620*310*180
TBSB-1000A/25V Three Phase AC380V±10% 50HZ 25V/1000A 700*352*185
TBSB-1000A/36V Three Phase AC380V±10% 50HZ 36V/1000A 700*352*185
TBSB-1000A/38V Three Phase AC380V±10% 50HZ 38V/1000A 780*365*187
TBSB-1200A/5V Three Phase AC380V±10% 50HZ 5V/1200A 580*342*185
TBSB-2000A/5V Three Phase AC380V±10% 50HZ 5V/2000A 780*310*180
TBSB-1800A/12V Three Phase AC380V±10% 50HZ 12V/1800A 780*310*180
TBSB-2500A/12V Three Phase AC380V±10% 50HZ 12V/2500A 1024*340*180
TBSB-3000A/12V Three Phase AC380V±10% 50HZ 12V/3000A 700*352*185
TBSB-3000A/15V Three Phase AC380V±10% 50HZ 15V/3000A 824*340*180
TBSB-4000A/10V Three Phase AC380V±10% 60HZ 10V/4000A 700*362*185
TBSB-4000A/15V Three Phase AC380V±10% 50HZ 15V/4000A 824*340*180
TBSB-5000A/7V Three Phase AC380V±10% 50HZ 7V/5000A 700*362*185
TBSB-5000A/15V Three Phase AC380V±10% 50HZ 15V/5000A 824*340*180
Can be customized according to requirements
