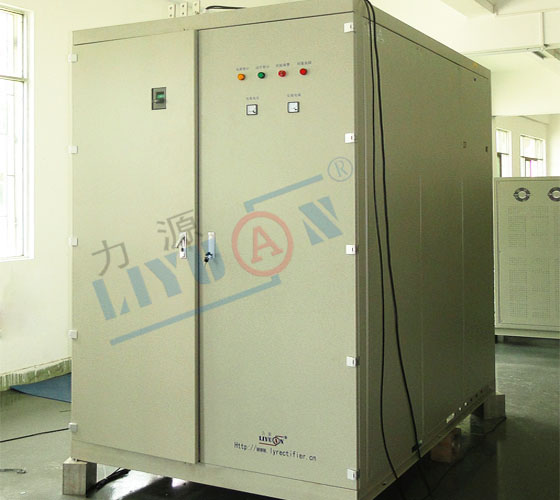

25V 12KA rectifier for DC/AC coloring

Input parameters: Three phase, AC380V±10% ,50~60HZ

Output parameters: AC : 0~25V 0~12KA  DC : 0~25V 0~12KA

Output mode: AC/ DC output

Cooling method: Water cooling

Power supply type: IGBT-based

Application Industry: Oxidation of aluminium profile and AC/DC coloring


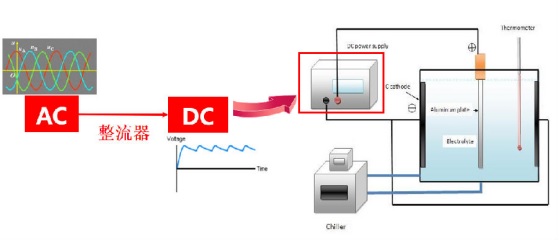

Anodic oxidation includes both aluminum anodizing and hard anodizing. Anodic oxidation (anodic oxidation), electrochemical oxidation of metals or alloys. The process of forming a layer of oxide film on aluminum products (anodes) under the action of an applied current in aluminum and its alloys under the corresponding electrolyte and specific process conditions. The so-called anodic oxidation of aluminum is an electrolytic oxidation process in which the surface of aluminum and aluminum alloys is usually transformed into a layer of oxide film, which has protective, decorative and some other functional properties.

Ordinary decorative anodizing requires a DC power supply voltage of usually 20V-24V, while hard anodizing usually has a higher voltage depending on the process, sometimes reaching 80V, 100V, 120V, etc. The current is determined by the size of the workpiece to be anodized, ranging from a few hundred amps to tens of thousands of amps.

Aluminum oxidation coloring, using artificial methods to make aluminum and its alloy products surface to generate a layer of oxide film (Al2O3) and apply different colors, in order to improve the wear resistance of aluminum, prolong the service life and increase the color and beauty. The basic process of oxidation coloring is aluminum surface treatment, oxidation, coloring and subsequent hydration sealing, organic coating and other treatment processes. The coloring methods of oxide film are chemical coloring, electrolytic coloring and natural coloring, etc.

Technical Parameters
Characteristic Types Parameter Items Technical Requirements
Power Types  Power types Silicon Controlled Rectifier
Model and specifications AC/DC-12KA/25V
Cooling mode Water-cooled
Switch tube type SCR Thyristor
Input Characteristics Rated Input Voltage Three-phase, AC380V±10% ,50~60HZ
Rated Input Power 353KW
Rated Input Current A phase, C phase AC 928A, B phase 5A
Input Power Factor COSΦ≥0.85
Output Characteristics Output Voltage DC:0~25V  AC:0~25V
Output Current DC:0~12000A  AC:0~12000A
According to accuracy 1A,0.1V
Rated Output efficiency ≥85%
Environmental Conditions Installation site Indoor installations
Altitude ≤1500 meters
Ambient temperature -20℃~45℃
Relative humidity ≤90%

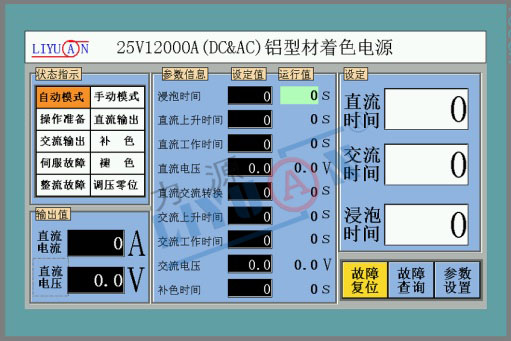

Control Mode Operating mode PLC, ADDA, Ethernet, RS485 and RS232

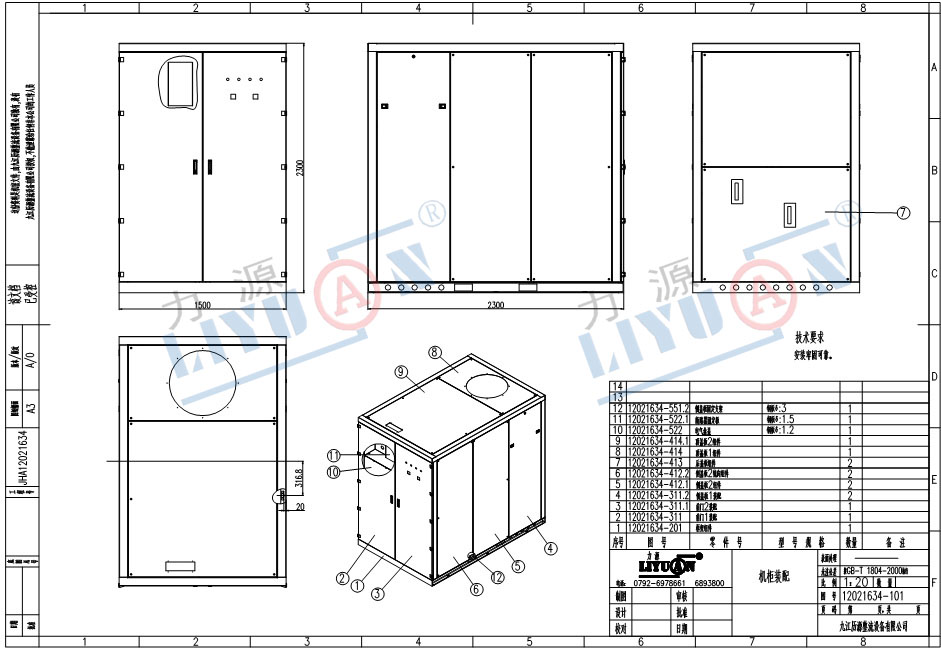

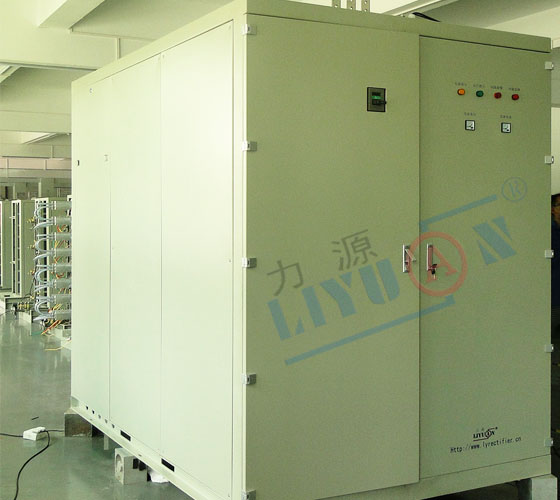

External Dimension Height*Width*Depth H2300mm×W1500mm×D2300mm
Protection Characteristics With over voltage, over current, overload, short circuit, overheating and other abnormal self-protection function

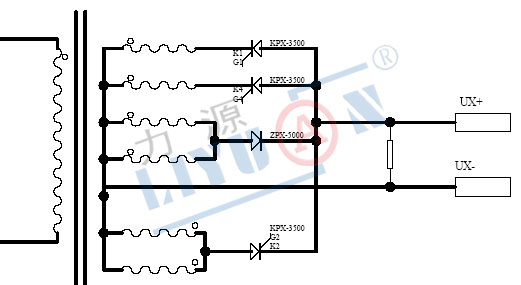

Main Structure

Optional models
Model Input Output Dimension (mm)/L*W*H
TBSB-400A/12V Three Phase AC380V±10% 50HZ 12V/400A 500*343*183
TBSB-500A/12V Three Phase AC380V±10% 50HZ 12V/500A 460*310*185
TBSB-600A/12V Three Phase AC380V±10% 50HZ 12V/600A 500*343*183
TBSB-800A/5V Three Phase AC380V±10% 50HZ 5V/800A 460*310*185
TBSB-800A/6V Three Phase AC380V±10% 50HZ 6V/800A 460*310*185
TBSB-800A/12V Three Phase AC380V±10% 50HZ 12V/800A 780*350*180
TBSB-1000A/12V Three Phase AC380V±10% 50HZ 12V/1000A 644*330*192
TBSB-1000A/16V Three Phase AC380V±10% 50HZ 16V/1000A 620*310*180
TBSB-1000A/25V Three Phase AC380V±10% 50HZ 25V/1000A 700*352*185
TBSB-1000A/36V Three Phase AC380V±10% 50HZ 36V/1000A 700*352*185
TBSB-1000A/38V Three Phase AC380V±10% 50HZ 38V/1000A 780*365*187
TBSB-1200A/5V Three Phase AC380V±10% 50HZ 5V/1200A 580*342*185
TBSB-2000A/5V Three Phase AC380V±10% 50HZ 5V/2000A 780*310*180
TBSB-1800A/12V Three Phase AC380V±10% 50HZ 12V/1800A 780*310*180
TBSB-2500A/12V Three Phase AC380V±10% 50HZ 12V/2500A 1024*340*180
TBSB-3000A/12V Three Phase AC380V±10% 50HZ 12V/3000A 700*352*185
TBSB-3000A/15V Three Phase AC380V±10% 50HZ 15V/3000A 824*340*180
TBSB-4000A/10V Three Phase AC380V±10% 60HZ 10V/4000A 700*362*185
TBSB-4000A/15V Three Phase AC380V±10% 50HZ 15V/4000A 824*340*180
TBSB-5000A/7V Three Phase AC380V±10% 50HZ 7V/5000A 700*362*185
TBSB-5000A/15V Three Phase AC380V±10% 50HZ 15V/5000A 824*340*180
