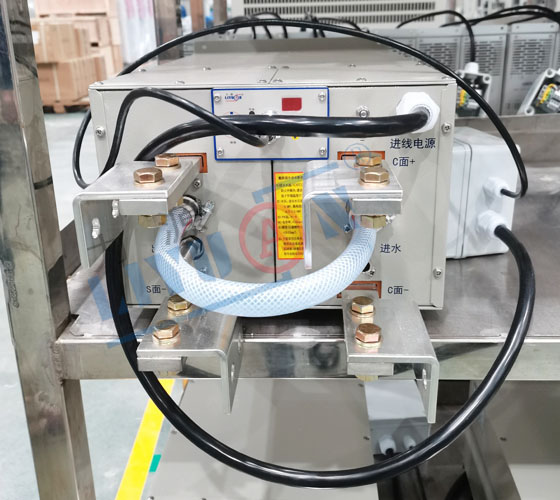

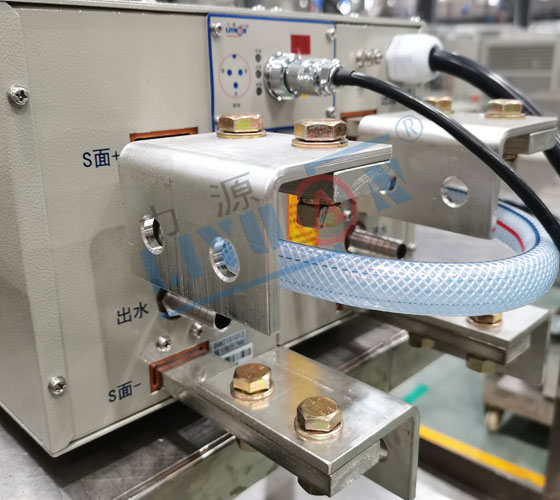

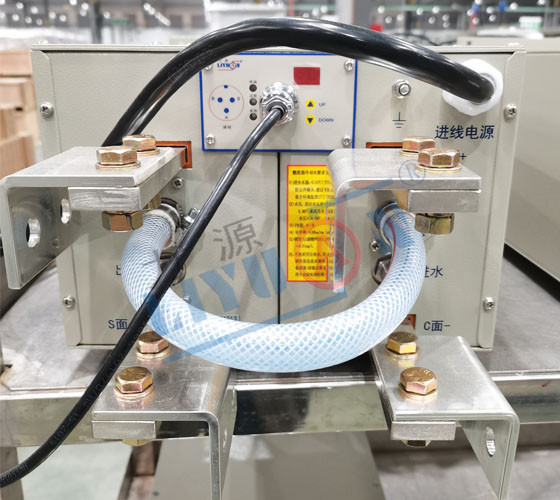

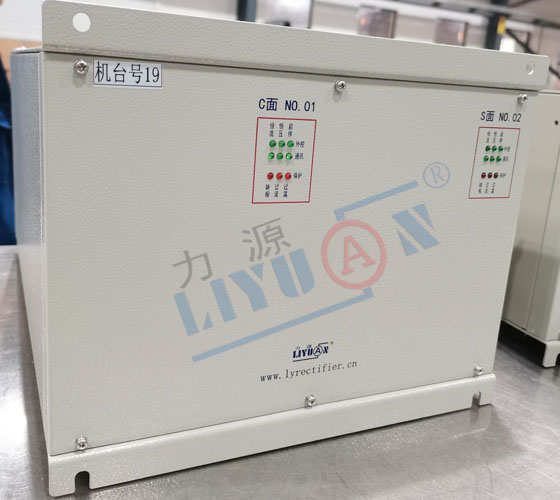

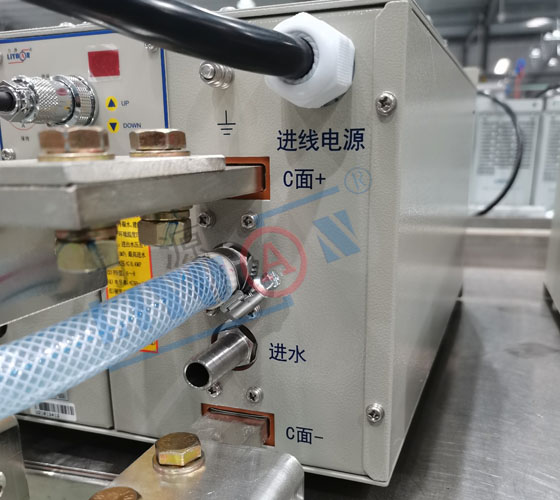

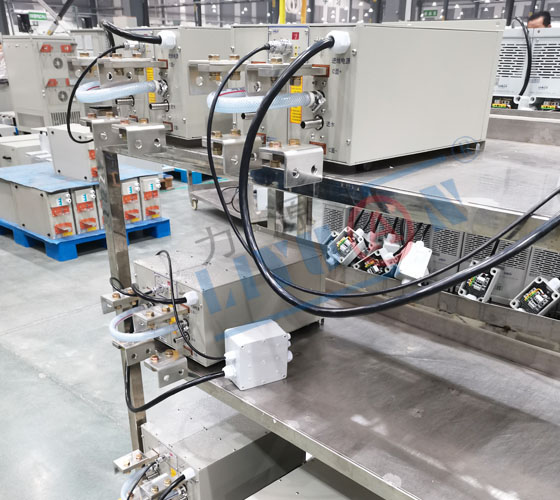

5V 2*600A Dual output rectifier for PCB Plating

Input parameters: Three phase AC380V±10%, 50HZ

Output parameters: DC 0~5V 0~600A (Dual output)

Output mode: Common DC Dual output

Cooling method: Water cooling

Power supply type: IGBT-based High-frequency Power Supply

Application Industry: PCB Naked layer copper plating

Description

In the PCB manufacturing process, electroless copper plating is an important step. It is widely used in the following two processes. One is plating onto bare laminate and the other is plating through hole, because under these two circumstances, electroplating cannot or can hardly be carried out. In the process of plating onto bare laminate, electroless copper plating plates a thin layer of copper on the bare substrate to make the substrate conductive for further electroplating. In the process of plating through hole, electroless copper plating is used to make the inner walls of the hole conductive to connect the printed circuits in different layers or the pins of the integrated chips.



The principle of electroless copper deposition is to use the chemical reaction between a reducing agent and a copper salt in a liquid solution so that the copper ion can be reduced to a copper atom. The reaction should be continuous so that sufficient copper can form a film and cover the substrate.

This series of rectifier is special designed for PCB Naked layer copper plating, adopt small size to optimized the installation space, the low and high current can be controlled by automated switching, the air cooling used independent enclosed air duct, synchronous rectification and energy saving, these features ensure high precision, stable performance and reliability.

Pulse waveform
Pulse waveform

communication board

Pulse waveform

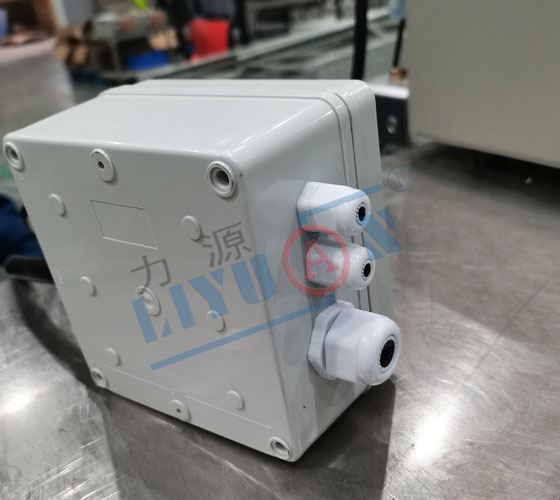

Header wiring diagram

Technical Parameters
Characteristic Types Parameter Items Technical Requirements
Power Types  Power types High-frequency Power Supply
Model and specifications TBSBZ-D1200A/05V(2*600A)
Cooling mode Water-cooled
Switch tube type IGBT
Input Characteristics Rated Input Voltage Three-phase,AC380V±10% ,50HZ
Rated Input Power 6.9KVA
Rated Input Current AC 10.5A
Input Power Factor COSΦ≥0.95
Output Characteristics Output Voltage DC  0~5V
Output Current DC  0~600A ( Dual output )
Stabilized Current Precision ≤1%
Stabilized Voltage Precision ≤1%
According to accuracy 1A,0.01V
Rated Output efficiency ≥91%
Environmental Conditions Installation site Indoor installations
Altitude ≤2000 meters
Ambient temperature -20℃~40℃
Relative humidity ≤90%
Control Mode Operating mode PLC, ADDA, Ethernet, RS485 or RS232
Weight Net weight About 30KG
External Dimension Height*Width*Depth H227mm×W280mm×D528mm
Protection Characteristics With over voltage, over current, overload, short circuit, overheating and other abnormal self-protection function
Main Structure

The main structure of the Dual output rectifier for PCB Plating

Optional models
Model Input Output Dimension (H**L)/mm
TBSBZ-D1200A/05V(2*600A) Three phaseAC380V±10% 50Hz DC 0~5V  DC 0~600A 227×280×528
TBSBZ-B1000A(2*500A)/5V Three phaseAC380V±10% 50Hz DC 0~5V  DC 0~500A 250×260×492
TBSBZ-D800A05V(2*400A) Three phaseAC380V±10% 50Hz DC 0~5V  DC 0~400A 240×210×482
TBSBZ-D600A(2*300A)/6V Three phaseAC380V±10% 50Hz DC 0~6V  DC 0~300A 240×210×482
TBSBZ-D600A(2*300A)5V Three phaseAC380V±10% 50Hz DC 0~5V  DC 0~300A 240×210×482
TBSBZ-500A 50A/12V Three phaseAC380V±10% 50HZ DC 0~12V  DC 0~500A 225×300×558
TBSBZ-2*400A/5V Three phaseAC380V±10% 50Hz DC 0~5V  DC 0~400A 240×210×482
TBSBZ-400A 50A/8V Three phaseAC380V±10% 50HZ DC 0~8V  DC 0~400A 189×100×378
TBSBZ-400A 50A/12V Three phaseAC380V±10% 50HZ DC 0~12V  DC 0~400A  0~50A 225×300×558
TBSBZ-350A 50A/6V Three phaseAC380V±10% 50HZ DC 0~6V  DC 0~350A 225×210×418
TBSBZ-D300A(2*150A)/5V Three phaseAC380V±10% 50Hz DC 0~5V  DC 0~150A 240×210×482
TBSBZ-2*250A/5V Three phaseAC380V±10% 50Hz DC 0~5V  DC 0~250A 240×210×482
TBSBZ-D200A(150A+50A)/8V Three phaseAC380V±10% 50Hz DC 0~8V  DC 0~150A 0~50A 240×210×482
