6V 60A 350A Transformer Rectifier for PCB Plating

Input parameters: Three phase AC380V±10%, 50HZ

Output parameters: DC 0~6V 0~60A 0~350A

Output mode: DC Dual outputs

Cooling method: Air cooling

Power supply type: IGBT-based High-frequency Power Supply

Application Industry: PCB Naked layer copper plating

Consult online sale@lyrectifier.com

Product
Description

Product Description Main component Technology Advantages Main Structure Technical Capability Inspection Process Quality Capability Technical Parameters Optional models

Product Description

PCB Plating Rectifier plays a vital role in ensuring uniform metal deposition during the PCB plating process, improving PCB quality and reducing plating costs. As the demand for advanced PCBs in the electronics industry continues to grow, the role of pulse rectifiers in ensuring the performance and reliability of electronic devices has become increasingly important.

PCB plating process

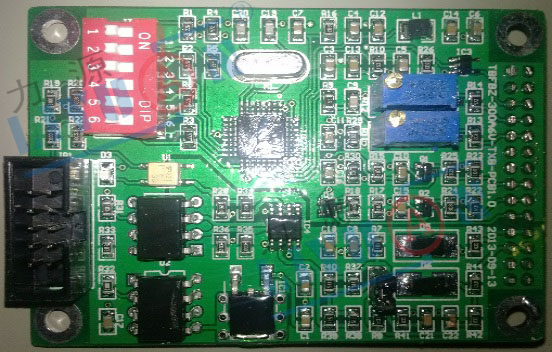

Main component

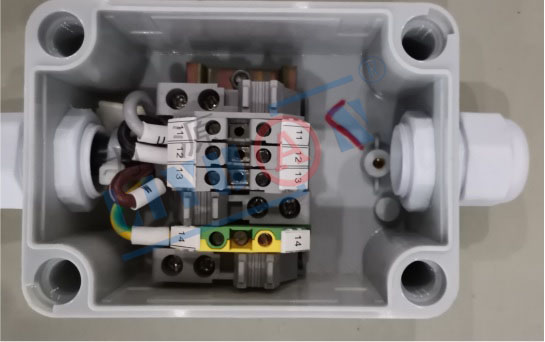

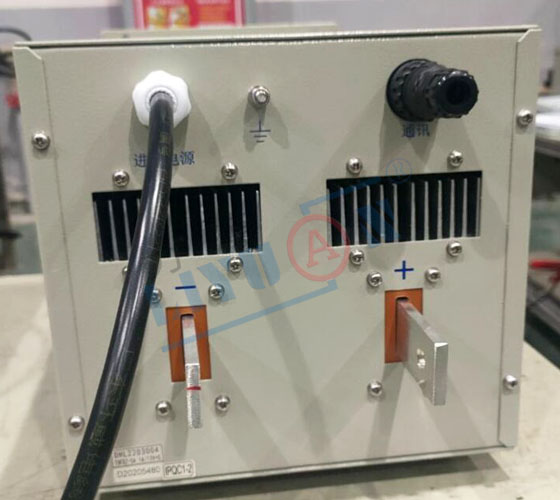

Air-cooled dual output junction box

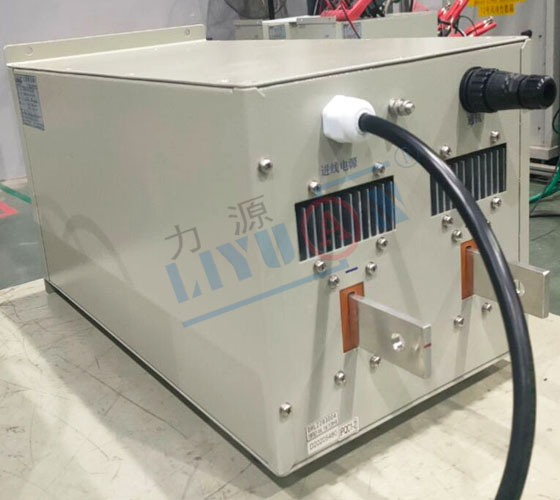

Air-cooled dual output terminal block

Technology Advantages

*High precision, stable and reliable performance;
*Synchronous rectification energy-saving advantages;
*Small volume, optimising installation space;
*Automatic switching control for large and small currents;
*Water-cooling adopts jointless piping, and air-cooling is independent and fully sealed air duct.
*Air-cooled, water-cooled
*Air-cooled sub-master dual output
*Water-cooled sub-master dual output

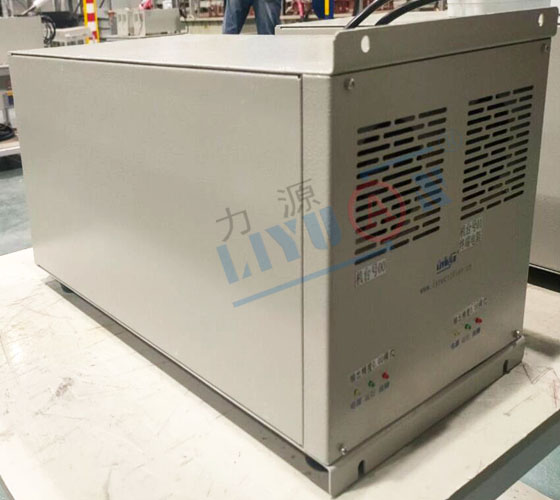

Main Structure

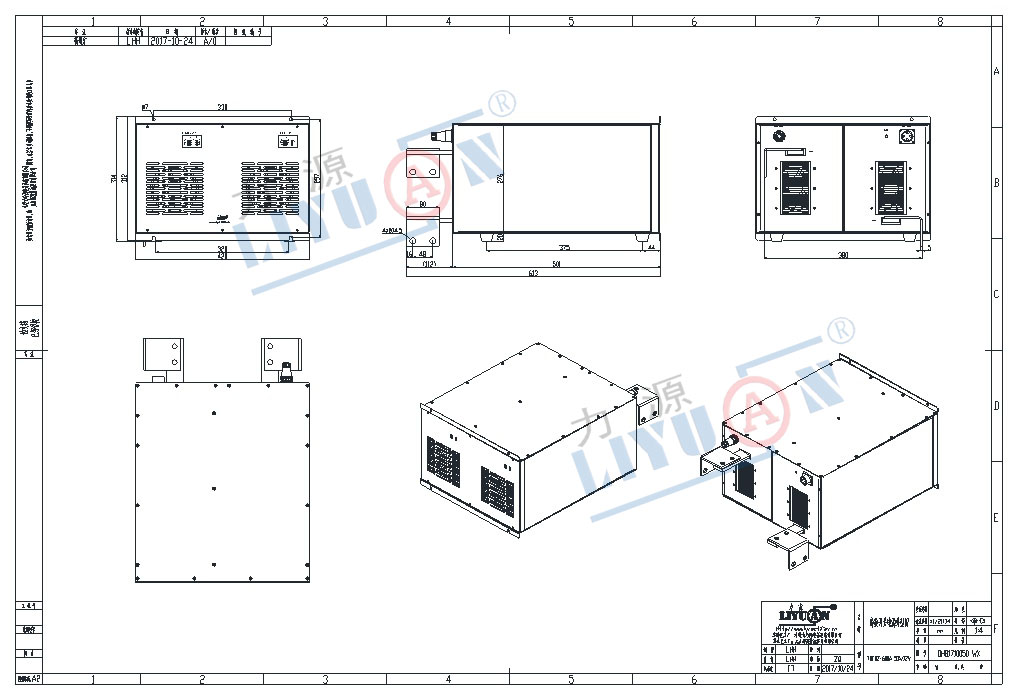

The main structure of 6V 60A 350A Transformer Rectifier for PCB Plating

Technical Capability

Liyuan Haina’s main products in the power supply field of the PCB industry include: TB series synchronous rectification

high-frequency switching power supply, TBFBG series high-precision MSAP dedicated power supply (AC-DC-DC mode),

high-speed positive and negative pulse power supply (independent split mode, multiple Any combination of outputs), TB

series dual output, four output, all-in-one computer, TB tablet computer series; distributed sub-module DC pulse power

supply series; dot matrix intensive small power supply series; multiple communication control methods optional; air cooling

Water cooling is optional; the overall performance is stable, energy-saving effciency is high, and the size is small. It has a

unique installation mode that is highly optimized for the same equipment; it has the comprehensive characteristics of

improving the uniformity and depth of electroplating and optimizing process characteristics. Technical Capability

Inspection Process

Perfect inspection process and strict quality management measures to ensure excellent quality delivery.

Inspection Process

Quality Capability

Quality control system ensures product quality effectively and it’s the cornerstone for us
*ISO 9001, ISO 14001, ISO 45001, CE, CSA certifications
*Rigorous quality control procedures is implemented to ensure the quality
*Professional quality management team to provide quality assurance for customers and partners

Quality Capability

Technical Parameters

Characteristic Types	Parameter Items	Technical Requirements
Power Types	Power types	High-frequency Power Supply
	Model and specifications	TBFBZ-60A 350A/6V
	Cooling mode	Air-cooled
	Switch tube type	IGBT
Input Characteristics	Rated Input Voltage	Three-phase,AC380V±10% ,50HZ
	Rated Input Power	2.2KW
	Rated Input Current	AC 3.3A
	Input Power Factor	COSΦ≥0.95
Output Characteristics	Output Voltage	DC 0～6V
	Output Current	DC 0～350A 0~60A ( Dual outputs )
	Stabilized Current Precision	≤1%
	Stabilized Voltage Precision	≤1%
	According to accuracy	0.1A，0.01V
	Rated Output efficiency	≥91%
Environmental Conditions	Installation site	Indoor installations
	Altitude	≤2000 meters
	Ambient temperature	-20℃～40℃
	Relative humidity	≤90％
Control Mode	Operating mode	PLC, ADDA, Ethernet, RS485 or RS232
Weight	Net weight	About 16KG
External Dimension	HeightWidthDepth	H225mm×W210mm×D418mm
Protection Characteristics	With over voltage, over current, overload, short circuit, overheating and other abnormal self-protection function

Optional models

Model	Input	Output	Dimension (HWL)/mm
TBFBZ-500A 80A/12V	Three phaseAC380V±10% 50HZ	0～12V 0～500A 0～80A	420×613×312
TBFBZ-350A 60A/6V	Three phaseAC380V±10% 50HZ	0～6V 0～350A 0～60A	189×200×418
TBFBZ-600A 50A/6V	Three phaseAC380V±10% 50HZ	0～6V 0～600A 0～50A	420×613×312
TBFBZ-500A 80A/12V	Three phaseAC380V±10% 50HZ	0～12V 0～500A 0～80A	420×613×312
TBFBZ-800A 60A/6V	Three phaseAC380V±10% 50HZ	0～6V 0～800A 0～60A	420×613×312
TBFBZ-200A 20A/12V	Three phaseAC380V±10% 50HZ	0～12V 0～200A 0～20A	189×200×418
TBFBZ-175 25A/12V	Three phaseAC380V±10% 50HZ	0～12V 0～175A 0～25A	227×300×478
TBFBZ-350 60A/9V	Three phaseAC380V±10% 50HZ	0～9V 0～350A 0～60A	189×200×418

If you need other IGBT electroplating rectifier, we can custom design them according to customer requirements. Please contact us.
