Input parameters: Three phase, AC480V±10% ,60HZ
Output parameters: DC 0-110V 0-830A
Output mode: Common DC output
Cooling method: Water cooling
Power supply type: Silicon Controlled Rectifier

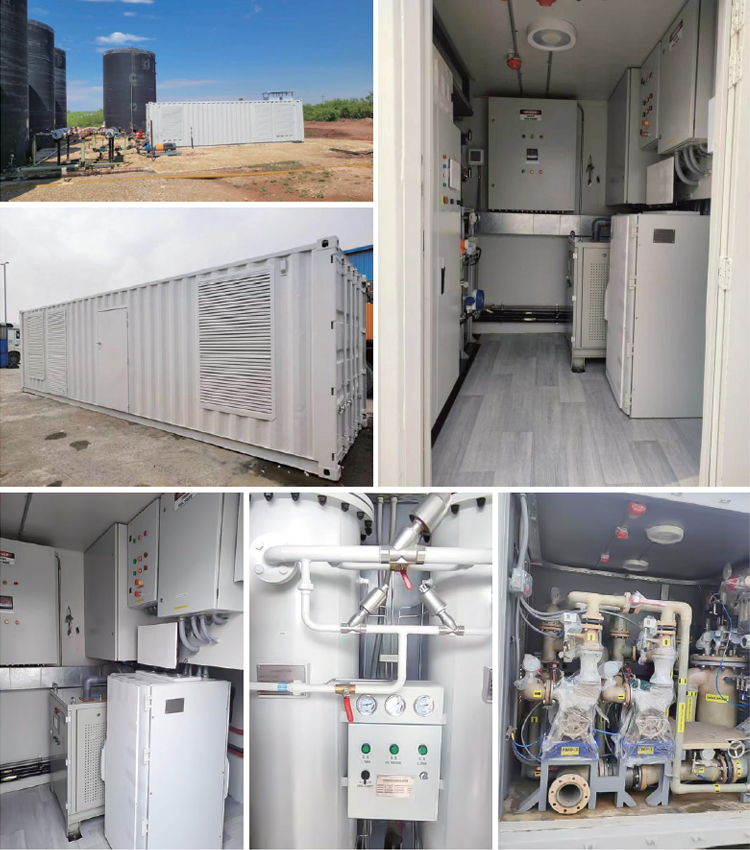

Application Industry: Chlor-Alkali Production, such as membrane/diaphragm cell for Cl₂, H₂, NaOH; Chlorate Manufacturing, such as NaClO₃, sodium chlorite; Water Treatment, such as NaOCl, ClO₂, on-site Cl₂; Precious Metal Refining, such as gold/silver chloride electrolysis.
A Chlor-Alkali Rectifier, unlike standard industrial rectifiers, must keep current rock-solid while blocking reverse events. If the DC wavers — even briefly — side reactions kick in, membranes degrade, product quality drops, or worse, you compromise safety. That’s why it’s the core of any chlor-alkali or chlorination plant.
› Chlor-Alkali Production — That’s Where You Get Caustic Soda and Liquid Chlorine
Take saturated brine. Run electrolysis. Out comes Cl₂, H₂, and NaOH.Membrane cell and diaphragm cell plants use this setup all the time. A Chlor-Alkali Rectifier is the standard choice here.
› Chlorate Manufacturing
Same thing applies. You need continuous DC to make sodium chlorate (NaClO₃), sodium chlorite, and other chlorine derivatives. Both chlor-alkali rectifiers and chlorination rectifiers can handle this.

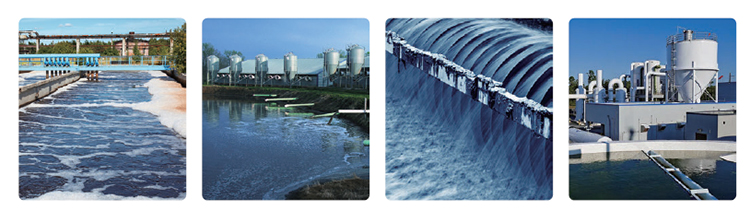

› Fine Chemical and Water Treatment Industries
These rectifiers power sodium hypochlorite generators, chlorine dioxide systems, and on-site chlorine generation units for industrial water treatment. Chlorination rectifiers are particularly common in water treatment applications.
› Precious Metal Refining
You’ll also find them in electrolytic purification of precious metals. Gold chloride, silver chloride solutions—that sort of thing. Both rectifier types work well here too.
› Reverse Current Protection
High-speed DC breakers plus dedicated reverse current protection. Stops back EMF from electrolytic cells during power disturbances.
› High Current Regulation Accuracy
Typical requirement: ≤0.5%. Advanced systems: ±0.1%. Hold the membrane balance or pay the price.
› Low Harmonic Distortion and High Power Factor
Energy costs are huge in this business. That’s why people go with 24-pulse, 36-pulse, or 48-pulse rectification—cuts the harmonics, cleans up your power.
› Large Power Capacity
Individual chlor-alkali rectifier and chlorination rectifier units often exceed 70 MVA. DC output runs from 20 kA to 60 kA. All depends on the plant scale.
› Regulating and Rectifier Transformer
Auto-transformer plus rectifier transformer with OLTC (on-load tap changer). Gives you multiple voltage steps to compensate for cell aging and process changes.
› Thyristor Rectifier Bridge
High-power SCRs in optimized parallel configurations. Better current sharing, lower losses, higher reliability at extreme currents.
› Pure Water Cooling System
Closed-loop deionized water cooling pulls heat out of power semiconductors. No issues with high-temp or corrosive environments at all.
› DSP-Based Digital Control Cabinet
Digital constant-current regulation with millisecond response. Talks to your DCS directly.
› Fast Dynamic Response
Compensates for grid fluctuations and changes in cell back EMF. Output stays stable.
› High Conversion Efficiency
Low-conduction-loss thyristors push overall efficiency above 98%. Real savings.
› Corrosion-Resistant Construction
You get protective coatings, corrosion-resistant piping, treated busbar surfaces. All built to last in chlorine-laden environments.
› Optimized Current Sharing
Advanced busbar design and parallel rectifier configurations eliminate hot spots.
› Intelligent Monitoring and Diagnostics
Built-in alarms and diagnostics cover semiconductor failures, overheating, cooling system abnormalities.
› Exceptional Energy Efficiency and Low Harmonic Performance
36-pulse and 48-pulse configurations as standard. Add APF (active power filter) and THD drops below 3%. Overall efficiency hits 98.5%.
› Advanced Corrosion Protection and Cooling Design
Fully enclosed cabinets, conformal coatings, and optimized cooling. Proprietary designs improve thermal balance and reduce maintenance.
› Modular Hot-Swappable Architecture
Drawer-type modules. Swap a faulty one without stopping production. That’s 24/7 operation.
› Dual-Core Digital Control Platform
DSP + FPGA gives you accurate pulse sync, fast response, soft-start, and automatic current recovery. Minimizes stress on electrolytic cells.
› Grid-Friendly Design
Optimized transformer and rectifier configurations improve electromagnetic compatibility. Less interference with surrounding instruments, better plant power quality.
› Pulse Number Selection
Match pulse count to local power quality requirements and plant capacity.
6-pulse: Small-capacity applications
12-pulse: Conventional industrial systems
24/36/48-pulse: Large-scale chlor-alkali facilities needing superior harmonic performance
Higher pulse number = lower harmonic distortion.
› Voltage Regulation Range
Cell voltage changes as electrolyzers age. Get enough transformer regulation range to maintain efficient operation over the full service life.
› Cooling Method
Above 15 KA? Use closed-loop pure water cooling. Air-cooled only for lower-capacity installations in clean environments.
› Safety Configuration
High-speed DC breakers and comprehensive protection are essential. No shortcuts.
| Characteristic Types | Parameter Items | Technical Requirements |
| Power Types | Power types | Silicon Controlled Rectifier |
| Model and specifications | KGFB-830A/110V | |
| Cooling mode | Water-cooled | |
| Switch tube type | SCR | |
| Input Characteristics | Rated Input Voltage | Three-phase, AC480V±10% ,60HZ |
| Rated Input Power | 119KVA | |
| Rated Input Current | AC 144A | |
| Input Power Factor | COSΦ≥0.90 | |
| Output Characteristics | Output Voltage | DC 0~110V |
| Output Current | DC 0～830A | |
| Stabilized Current Precision | ≤1%（Rated Current) | |
| According to accuracy | 1A，0.1V | |
| Rated Output efficiency | ≥85% | |
| Environmental Conditions | Installation site | Indoor installations |
| Altitude | ≤2000 meters | |
| Ambient temperature | -20℃～40℃ | |
| Relative humidity | ≤90％ | |
| Control Mode | Operating mode | PLC, ADDA, Ethernet, RS485 and RS232 |
| Weight | Net weight | About 800KG |
| External Dimension | Height*Width*Depth | H1665mm×W100mm×D1000mm |
| Protection Characteristics | With over voltage, over current, overload, short circuit, overheating and other abnormal self-protection function | |
Perfect inspection process and strict quality management measures to ensure excellent quality delivery.
If you require water treatment power supplies with different specifications, we can custom-design them to meet your requirements. Please contact us for more information.
