Input parameters: Three phase, AC380V±10% ,50HZ
Output parameters: DC 0~15V 0~20KA
Output mode: Common DC output
Cooling method: Air cooling
Power supply type: IGBT-based high frequency power supply
Application Industry: Gas Electrolysis, such as hydrogen, sulfur hexafluoride, carbon tetrafluoride, ultra pure ammonia etc.
The Hydrogen Electrolysis Rectifier is a DC power supply device used to produce hydrogen by electrolyzing water. It converts AC power into DC power to provide the required electrical energy for the electrolyzer, thereby decomposing water molecules to produce hydrogen and oxygen. This type of equipment is essential for achieving green energy transformation and hydrogen economy.
*Photovoltaic, wind power, wave power, biomass power(green power) are connected to the power sourcerectifier and the electrolyzer to electrolyze hydrogen production
*Electrolytic hydrogen production by power source rectifer connected to conventional power grid and integrated with electrolyzer
*Inverter system between hydrogen energy storage and power grid
*The rectifier adopts a high-frequency rectifier circuit, with high inverter frequency, fast control speed and high power factor of the equipment;
*The incoming line of the unit is equipped with an EMI filter reactance device
* The rectifier adopts multiple modules in parallel, with a small single module, low requirements for electronic components and low failure rate;
*Full-bridge phase-shifted soft switching control mode
*Adopt advanced logic interlock control circuit
*The problem of magnetic bias is well eliminated
Perfect inspection process and strict quality management measures to ensure excellent quality delivery
Schematic Of IGBT Electrolysis Hydrogen Rectifier
| 1 | Application | Gas Electrolysis |

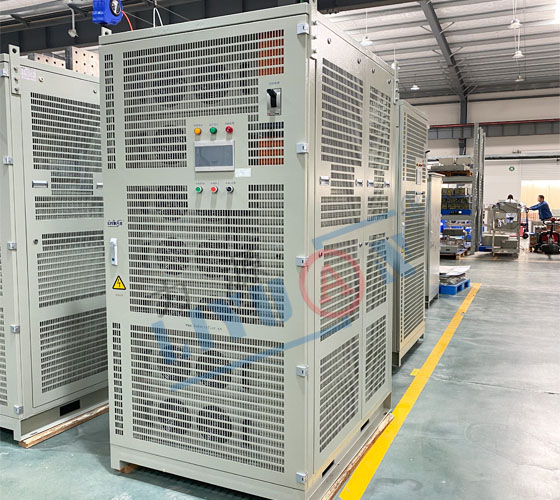

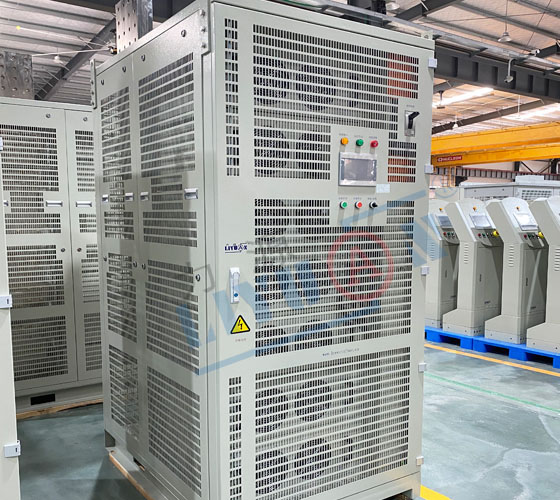

| 2 | Model | TBFB-20KA/15V |
| 3 | Input Voltage | AC380V±10%；Frequency Range：50Hz |
| 4 | Rectifier mode | Full wave MOS rectifier |
| 5 | Switch tube component configuration | INFINEON IGBT |
| 6 | Rectifier element configuration | IR MOS tube |
| 7 | structural | Indoor type with shell protection; Frame combination vertical, the superposition of each single machine |
| 8 | Cooling type | Water-cooled |
| 9 | Control mode | Digital integrated system, MOS rectifier; RS485 full digital network control system single set of power SUPPLY CPU board + touch screen centralized control system Remote upper computer centralized control. |
| Application | Model | Output Parameters |
| Fluoride electrolysis, SF4,SF6 | TBSB-9000A/12V | 12Vdc/9000A |
| TBSB-10000A/12V | 12Vdc/10000A | |
| TBSB-6000A/15V | 15Vdc/6000A | |
| TBFBZ-13000A/9.5V | 9.5Vdc/13000A | |
| TBFBZ-13000A/10V | 10Vdc/13000A | |
| TBFBZ-15000A/10V | 10Vdc/15000A | |
| TBFBZ-18000A/11V | 11Vdc/18000A | |
| TBSB-20000A/9V | 9Vdc/20000A | |
| TBSB-10000A/15V | 15Vdc/10000A | |
| TBSB-12000A/15V | 15Vdc12000A | |
| TBSB-24000A/15V | 15Vdc/24000A | |
| TDSB-2000A/70V | 70Vdc/2000A | |
| TDSB-2000A/90V | 90Vdc/2000A | |
| TDSB-3000A/65V | 65Vdc/3000A | |
| TDSB-1800A/80V | 80Vdc/1800A | |
| TDSB-2000A/100V | 100Vdc/2000A | |
| TDSB-6000A/50V | 50Vdc/6000A | |
| KES-7000A/150V | 150Vdc/7000A | |
| TBSB-12000A/20V | 20Vdc/12000A | |
| TBSB-13KA10V | 10Vdc/13KA | |
| TBSB-20KA10V | 10Vdc/20KA | |
| SF6 | TBSB-6000A13V | 13Vdc/6000A |
| TDSB-1500A80V | 80Vdc/1500A | |
| Hydrogen electrolysis | KES-8.7KA655V | 655Vdc/8.7KA |
If you require a hydrogen electrolysis rectifier with different specifications, we can custom-design them to meet your requirements. Please contact us for more information.
Looking for the factory price of a 15V 20KA hydrogen electrolysis rectifier? Liyuan Haina Rectifier, a professional manufacturer with 27+ years specializing in industrial rectifiers, supplies global clients including the United States, Sweden, Netherlands, Italy, Spain, South Africa, Russia, Germany, Japan, South Korea, Malaysia, etc. Our advanced factory delivers cost-effective Made-in-China solutions, with competitive prices and customizable options. Contact us for sales inquiries.
Hot Tags: 15V 20KA Hydrogen Electrolysis Rectifier, Electrolytic Gas Rectifier, dc power supply for electrolysis, electrolysis rectifier, rectifier for electrolysis, electrolysis rectifier efficiency, Made in China solutions
