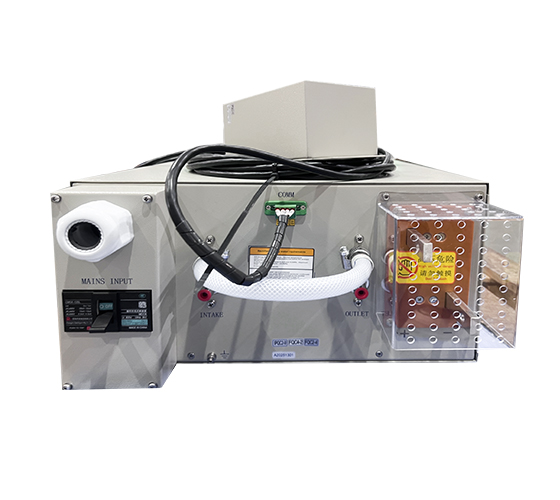

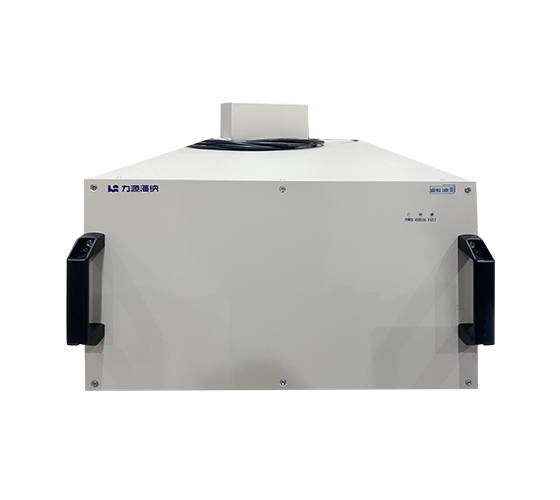

Input parameters: Three-phase AC400V 50Hz Complies with National Power Quality Standards
Output parameters: DC 0~150V 0~300A
Output mode: Common DC output
Cooling method: Water cooling
Power supply type: High frequency switching power
Application Industry: Gas Electrolysis, such as hydrogen, sulfur hexafluoride, carbon tetrafluoride, ultra pure ammonia etc.
The Hydrogen Electrolysis Rectifier is a DC power supply device used to produce hydrogen by electrolyzing water. It converts AC power into DC power to provide the required electrical energy for the electrolyzer, thereby decomposing water molecules to produce hydrogen and oxygen. This type of equipment is essential for achieving green energy transformation and hydrogen economy.
*Photovoltaic, wind power, wave power, biomass power(green power) are connected to the power sourcerectifier and the electrolyzer to electrolyze hydrogen production
*Electrolytic hydrogen production by power source rectifer connected to conventional power grid and integrated with electrolyzer
*Inverter system between hydrogen energy storage and power grid
*The rectifier adopts a high-frequency rectifier circuit, with high inverter frequency, fast control speed and high power factor of the equipment;
*The incoming line of the unit is equipped with an EMI filter reactance device
* The rectifier adopts multiple modules in parallel, with a small single module, low requirements for electronic components and low failure rate;
*Full-bridge phase-shifted soft switching control mode
*Adopt advanced logic interlock control circuit
*The problem of magnetic bias is well eliminated
Perfect inspection process and strict quality management measures to ensure excellent quality delivery
Schematic of IGBT Electrolysis Hydrogen Rectifier
| Type of characteristics | Parameters | Technical Requirements |
| Input characteristics | Rated input voltage | three-phase AC400V 50Hz Complies with National Power Quality Standards |
| Rated input current | AC 76.0 A | |
| Rated input power | 52.6KVA | |
| Rated input power factor | COSΦ≥0.95 | |
| Output characteristics | Output voltage | DC 0～150V adjustment |
| Output current | DC 0～300A adjustment | |
| Precision of steady current | ≤1% | |
| Precision of stable voltage | ≤1% | |
| Displayed precision | 1A，0.1V | |
| Current ripple coefficient | ≤1%（I≥50%Id） | |
| Rated output power | ≥90% | |
| Insulation characteristic | Insulation resistance | Input – Output: ≥5MΩ |
| Input – Cabinet: ≥5MΩ | ||
| Output – Cabinet: ≥5MΩ | ||
| Protective characteristics | With self-protection function under non-normal cases such as over-voltage, over-current, overload, short circuit and overheating | |
| Other characteristics | Noise | ≤75dB |
| Running state | Continuous full load run of product | |
| Load level | Level II | |
| Insulation grade of the transformer | Grade B | |
| Weight | 40kg | |
| Application | Model | Output Parameters |
| Fluoride electrolysis, SF4,SF6 | TBSB-9000A/12V | 12Vdc/9000A |
| TBSB-10000A/12V | 12Vdc/10000A | |
| TBSB-6000A/15V | 15Vdc/6000A | |
| TBFBZ-13000A/9.5V | 9.5Vdc/13000A | |
| TBFBZ-13000A/10V | 10Vdc/13000A | |
| TBFBZ-15000A/10V | 10Vdc/15000A | |
| TBFBZ-18000A/11V | 11Vdc/18000A | |
| TBSB-20000A/9V | 9Vdc/20000A | |
| TBSB-10000A/15V | 15Vdc/10000A | |
| TBSB-12000A/15V | 15Vdc12000A | |
| TBSB-24000A/15V | 15Vdc/24000A | |
| TDSB-2000A/70V | 70Vdc/2000A | |
| TDSB-2000A/90V | 90Vdc/2000A | |
| TDSB-3000A/65V | 65Vdc/3000A | |
| TDSB-1800A/80V | 80Vdc/1800A | |
| TDSB-2000A/100V | 100Vdc/2000A | |
| TDSB-6000A/50V | 50Vdc/6000A | |
| KES-7000A/150V | 150Vdc/7000A | |
| TBSB-12000A/20V | 20Vdc/12000A | |
| TBSB-13KA10V | 10Vdc/13KA | |
| TBSB-20KA10V | 10Vdc/20KA | |
| SF6 | TBSB-6000A13V | 13Vdc/6000A |
| TDSB-1500A80V | 80Vdc/1500A | |
| Hydrogen electrolysis | KES-8.7KA655V | 655Vdc/8.7KA |
If you require a hydrogen electrolysis rectifier with different specifications, we can custom-design them to meet your requirements. Please contact us for more information.
