Input parameters: Three phase, AC380V±10% ,60HZ
Output parameters: DC 0~30V 0~1000A
Output mode: Common DC output
Cooling method: Air cooling
Power supply type: IGBT-based
Application Industry: Water treatment industry，such as wastewater treatment, seawater desalination, ballast water treatment, seawater or salt water sodium hypochlorite.

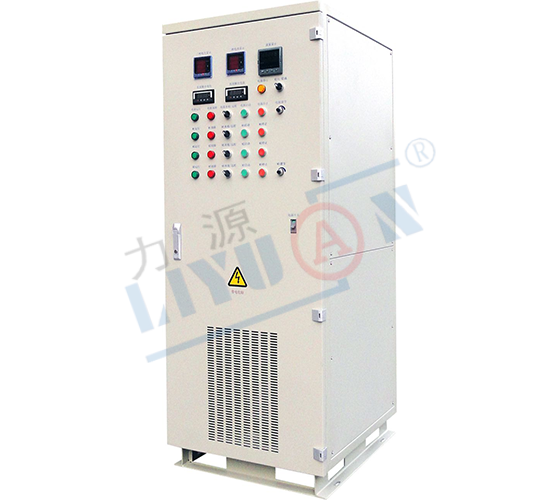

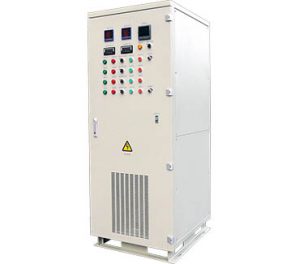

Water treatment rectifier is a special equipment to provide chemical electric field environment for water treatment by chemical method. Widely used in electrolytic process wastewater treatment, seawater desalination, ballast water treatment, seawater or salt water sodium hypochlorite (electric chlorination), used in industry, small, residential areas, schools and other water bodies, ballast water treatment; Seawater treatment for industries that use seawater as a cooling system, such as cooling power plants, petrochemical industries, LNG terminals, desalination facilities and other coastal industries.
*Optional full digital trigger control system, higher stability.
*High-frequency IGBT rectifier series adopts full-bridge soft-switching full digital control technology.
*High effcieny, low heat loss structure design, can choose the third generation of rectification mode to improve power e ciency.
*Adopt anti-noise circuit, multi-level protection design, stable and reliable performance.
*All series are considered sealing design, to meet the requirements of the usage environment, improve the rectifier resistance.
*All series have overheat, over current, over voltage and phase failure protection.
*RS485 interface or standard 4-20MA, 0-10V, 0-5V analog control signals can be selected.
*Multi-functional controllers can be selected to match the water treatment process.
*Normal panel control mode, multi-function combination control, network communication, touch screen control and DCS compatible control mode.
| Characteristic Types | Parameter Items | Technical Requirements |
| Power Types | Power types | High-frequency Power Supply |
| Model and specifications | HIFB-1000A/30V | |
| Cooling mode | Air-cooled | |
| Switch tube type | IGBT | |
| Input Characteristics | Rated Input Voltage | Three-phase, AC380V±10% ,50HZ |
| Rated Input Power | 33.3KW | |
| Rated Input Current | AC 50.6A | |
| Input Power Factor | COSΦ≥0.95 | |
| Output Characteristics | Output Voltage | DC 0~30V |
| Output Current | DC 0～1000A | |
| Stabilized Current Precision | ≤1%（Rated Current) | |
| According to accuracy | 1A，0.1V | |
| Rated Output efficiency | ≥90% | |
| Environmental Conditions | Installation site | Indoor installations |
| Altitude | ≤2000 meters | |
| Ambient temperature | -20℃～40℃ | |
| Relative humidity | ≤90％ | |
| Control Mode | Operating mode | PLC, ADDA, Ethernet, RS485 and RS232 |
| Weight | Net weight | About 75KG |
| External Dimension | Height*Width*Depth | H790mm×W880mm×D1050mm |
| Protection Characteristics | With over voltage, over current, overload, short circuit, overheating and other abnormal self-protection function | |
Perfect inspection process and strict quality management measures to ensure excellent quality delivery
Our DC power supply is widely used in water treatment, wastewater treatment,electrolytic treatment of wastewater and waste liquid, and precious metal recycling places
If you need other water treatment rectifiers, we can custom design them according to customer requirements. Please contact us.
Need a 30V 1000A rectifier for water electrolysis? Liyuan Haina Rectifier is one of the professional manufacturers and suppliers in this field. With over 27 years of focus on R&D, design, production, sales, and technical services for industrial rectifiers, we have already exported our products to the United States, Canada,Pakistan, Britain, Italy, Spain, South Africa, Russia, the UAE, Japan, South Korea, Malaysia, and other parts of the world. Equipped with a productive factory, we warmly welcome you to purchase our high-quality, Made-in-China products at competitive prices or try our customized service.
