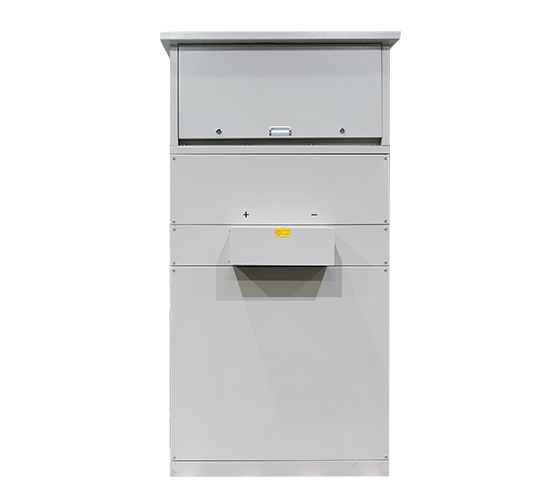

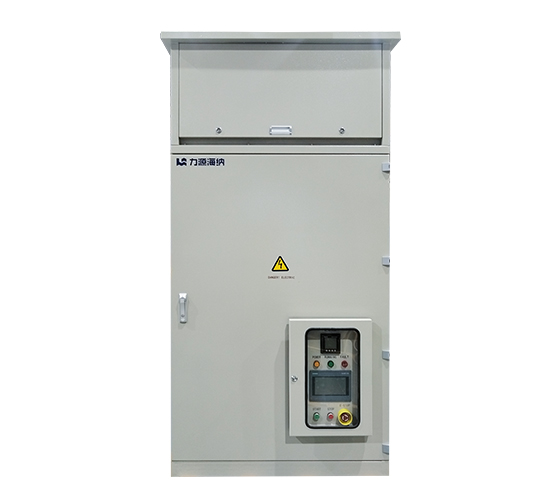

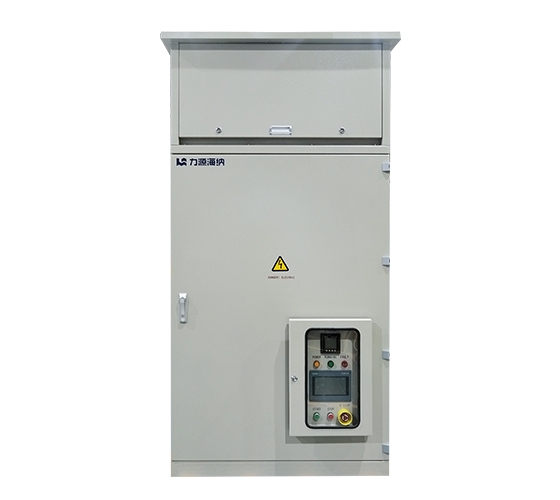

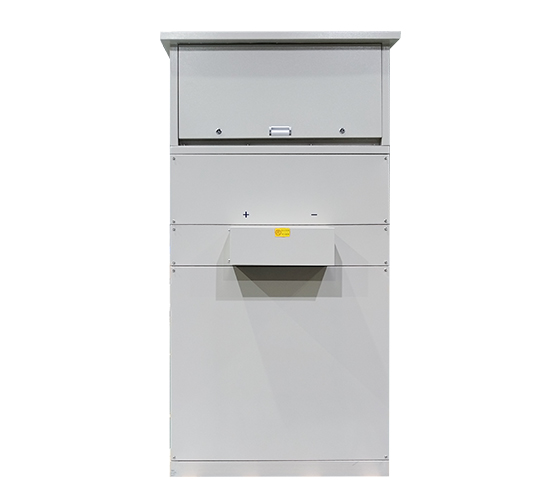

460A 640V Marine Rectifier

Designed for marine and industrial use, the KGFB-460A/640V is a high-efficiency marine rectifier that uses Silicon Controlled Rectifier (SCR) technology to convert three-phase AC power into stable DC output.This marine rectifier employs advanced phase-control technology and a closed-loop control system to deliver precise regulation of voltage and current. The system is intended for applications that require reliable DC power together with compact installation and dependable long-term operation under demanding conditions, making it a specialized marine rectifier for harsh environments.

For marine and offshore applications, marine rectifiers are used to supply stable and continuous DC power for critical electrical equipment. As a robust marine rectifier, it is frequently installed in anti-corrosion protection systems, propulsion support units, electrolysis equipment and industrial control applications onboard ships and offshore platforms. This marine rectifier is designed to perform reliably in demanding ocean environments.

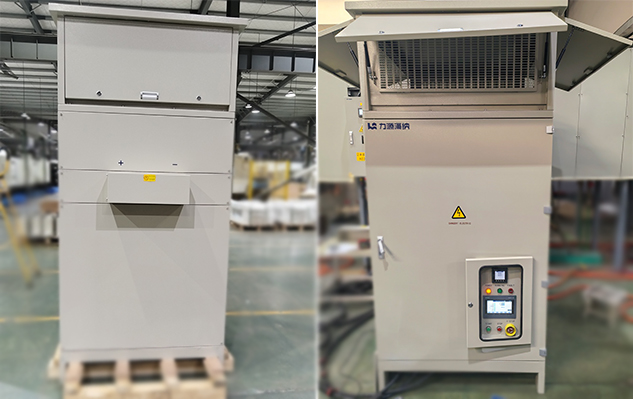

Field application diagram

Control & Regulation
› RS485 digital control function (MODBUS-RTU protocol) – supports remote monitoring and automation for this marine rectifier.
› Closed-loop phase control – samples output voltage and current in real time for stable regulation of the marine rectifier.
› Dual-mode operation – switchable between constant current (CC) and constant voltage (CV) stabilization.
› High stabilization precision – current and voltage precision ≤1%

Power Performance
› High power factor – COSΦ ≥0.95
› High efficiency – rated output efficiency ≥90%
› Wide output range – DC 0–460A / 0–640V, fully adjustable
› High reserve factor – silicon component voltage and current reserve ≥3 times

Structural & Thermal Design
› Reasonable structural design – horizontal type, compact footprint (H1750×W850×D1300mm)
› Only the radiator is in the air duct – minimizes dust accumulation on electronic components of the marine rectifier
› Effective sealing and isolation – protects internal electronics from contamination
› High protective properties – suitable for harsh marine/industrial environments, as expected from a durable marine rectifier

Protection & Reliability
› Practical and effective multiple protection system – includes over-voltage, over-current, phase loss, soft start, and over-heat protection
› High reliability – MTBF ≥50,000 hours

› Optional N+1 redundant backup
› Full soft switching technology – reduces switching losses and electromagnetic interference
› High insulation strength – AC1000V, 10mA, 1 minute
› High insulation resistance – ≥5MΩ

Wiring & Installation
› Standard wiring and special wiring – flexible copper bar or cable connections
› Clear grounding requirements – ground resistance <4Ω, dedicated grounding stud
› Sufficient maintenance space – >1m front and back reserved in design

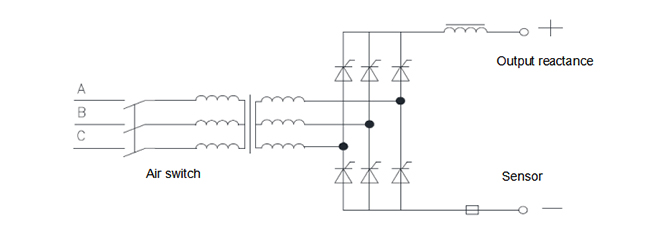

The AC input is controlled by SCRs and sent to a transformer to obtain low-voltage AC. It is then rectified into DC output to supply the required voltage and current. The control circuit samples output voltage and current, applies closed-loop feedback, and uses phase control to adjust the SCR triggering angle, ensuring stable output of this marine rectifier.

Schematic Diagram of Main Circuit

Air Cooling:Heat dissipation fan + air duct + comb heat sin

Water Cooling：Built-in water circulation line

» Solution

Liyuan will keep up with the world’s latest technology closely, and uphold the concept of providing customers with high-quality power supplies and professional integrated services.

With advanced design and rich experience in rectifier manufacturing, we will provide the best power solutions as well as the most stable and efficient power supply for users both at home and abroad.

» Technical Capability

LIYUAN rectifier is the most competitive brand in China

Company relies on strong technology research and development cooperation basis, created a number of advanced technology, in recent 3 years amounted to more than 30 to apply for a patent, which has nearly 10 patents of invention.

Equipped with the national electric power transformation and control engineering technology research center (branch), and has set up a loan enterprise academician workstation.

Strict implementation of ISO quality management system, and through the CE safety certification, has been implementing ERP management for many years, to achieve the network, systematic computer control, the formation of a standard, efficient modern management system.

» Qualification certification

Liyuan adhere to innovation and the continuous improvement of power conversion efficiency and product quality.

The increasing R&D investment every year, and cooperation with China’s well-known universities, we has established the research center of national electric power conversion and control engineering technology.

Especially the related core patents of high-power synchronous rectifier power supply, stay ahead of the whole industry in China.

The ISO 9001 quality management system has been fully implemented in Liyuan, including quality inspection of components in warehouse, production process inspection, and final product inspection.

We adopt advanced scientific quality management system and the most stringent testing methods in the whole process to ensure the stability and reliability of products.

» Service

› Packing

1)Small size rectifier packing in carton box separately.

2)Large size rectifier will be packed in wooden case.

3)We guarantee that all the packing is intact when it reaches its destination.

› Shipping

1)30-45 Days after payment.

2)Transport: DHL, FEDEX, UPS, Air shipping, Boat shipping

3)You may choose our shipping partner or your own partner.

› Maintenance

We are pleasant to share our theory and experience on equipment maintenance with users.

We are pleasant to interact with users to collect their tips and know-hows on equipment maintenance.

The module “Maintenance” here is intended to help users solve various problems they possibly encounter during equipment maintenance…

If you need other marine rectifiers, we can custom design them according to customer requirements. Please contact us.
