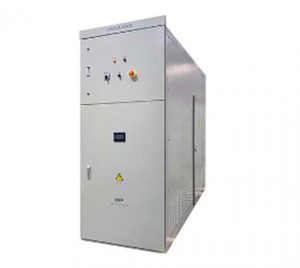

2800V 4600A Polysilicon power supply

2800V 4600A Polysilicon power supply

75A 12KV Polysilicon power supply for photovoltaic industry

Input parameters: Three phase AC10kv土10% 50士1HZ

Output parameters: DC 0~12KV 0~75A

Output mode: Common DC output

Cooling method: Air cooling or water cooling

Power supply type: SCR silicon controlled

Application Industry: Polycrystalline silicon reduction furnace pressure and reduction, crystal growth.

Description

Polysilicon, is a form of elemental silicon. When molten elemental silicon solidifies under the condition of supercooling, silicon atoms are arranged into many crystal nuclei in the form of diamond lattice. If these crystal nuclei grow into grains with different crystal plane orientations, then these grains are combined to crystallize into polycrystalline silicon.

Technical specification

Suppress restore integration integration.

With fast current limiting technology to avoid the original easy trip phenomenon.

Advanced digital trigger control system.

Optical fiber has high signal transmission stability.

Using efficient voltage stacking technology.

Special axis center symmetry crimping process.

High performance PID adaptive control strategy.

Multiple effective protection functions.

Intelligent fault protection, integrated design and reliable water system.

Technical parameters
No. Items parameters
1 Input voltage Three phase AC10kv土10% 50士1HZ
2 Ac input output 3 phase transformer output 9 winding separately controlled
3 Start down voltage 12KV,customized
4 Reduction output current 0~75A,customized
5 Reduced output voltage 0~12KV,customized
6 Precision of steady current ≤±0.2%
7 Power factor SCR maxminum current ≥0.92; IGBT≥0.95
8 Output gear of each phase on secondary side of ScR transformer 5 gear
9 IGBT model gear 2 gear
10 SCR control model Each load group has 5 sets of reverse parallel thyristor reverse gear shift and pressure regulation plus 2 sets of reverse parallel thyristor pressure control
11 IGBTcontrol model PWM
12 Protection function Over voltage, over current, under voltage, short circuit, overheating and other protective functions
13 Cooling Type Water cooling/air cooling optional
14 Control type RS485、CAN、Ethernet are optional
15 Dimension As per customer’s requirements
Optional models
No. Cabinet type Model
1 SCRWater cooled reduction power cabinet KGS G-4600A/2800V
2 SCRWater-cooled reduction starting power Converged cabinet KGSGQ-4600A/2800V
3 SCRAir cooled restore start cabinet KGFQ-75A/12kV
4 IGBTWater cooled reduction power cabinet IGSG-4600A/2800V
5 IGBTWater-cooled reduction starting power Converged cabinet IGSGQ-4600A/2800V
