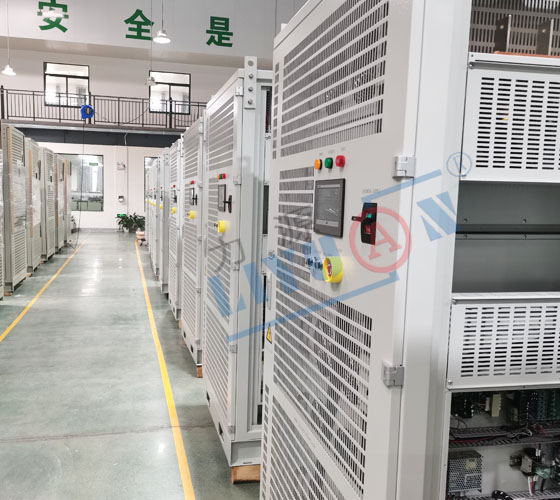

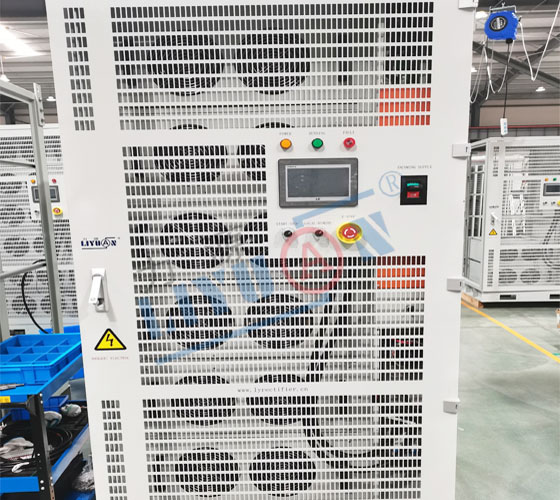

10V 15KA electrolytic rectifier for sulfur hexafluoride

Input parameters: Three phase, AC380V±10% ,50HZ

Output parameters: DC 0~10V 0~15KA

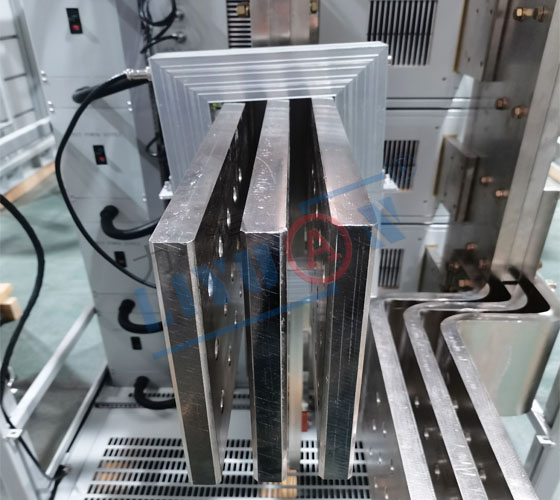

Output mode: Common DC output

Cooling method: Air cooling

Power supply type: IGBT-based

Application Industry: Gas Electrolysis, such as hydrogen, sulfur hexafluoride, carbon tetrafluoride, ultra pure ammonia etc.

Description

The electrolytic gas rectifier is mainly used in the electrolytic synthesis of hydrogen, sulfur hexafluoride, carbon tetrafluoride, sulfur hexafluoride, ultra pure ammonia and other special gases.

Hydrogen production by electrolysis of water is the separation of water molecules into hydrogen and oxygen through an electrochemical process under the action of direct current. According to the different diaphragm, it can be divided into alkaline water electrolysis, proton exchange membrane electrolysis and solid oxide electrolysis.

Electrolytic method to obtain fluorine gas, electrolytic potassium hydrogen fluoride and hydrogen fluoride mixture, with compacted graphite as the anode, steel electrolytic cell body as the cathode, potassium hydrogen fluoride as electrolyte, anhydrous hydrofluoric acid electrolytic, and then through purification.

Electrolytic synthesis method to produce sulfur hexafluoride technology, the sulfur is directly added to the fluorine electrolytic cell, and is prepared into khF2-HF-S mixture. When electrolytically melting this mixture, the fluorine produced immediately reacts with the sulfur in the electrolyte and generates SF6. After adding the sulfur, the electrolytic voltage of the electrolytic cell does not increase, nor does it cause current loss.

Technical Parameters
Characteristic Types Parameter Items Technical Requirements
Power Types  Power types High-frequency Power Supply
Model and specifications TBFB-15KA/10V
Cooling mode Air-cooled
Switch tube type IGBT
Input Characteristics Rated Input Voltage Three-phase, AC380V±10% ,50HZ
Rated Input Power 160 KW
Rated Input Current AC 242A
Input Power Factor COSΦ≥0.95
Output Characteristics Output Voltage DC  0~10V
Output Current DC  0~15KA
Stabilized Current Precision ≤1%(Rated Current)
According to accuracy 1A,0.01V
Rated Output efficiency ≥94%
Environmental Conditions Installation site Indoor installations
Altitude ≤1500 meters
Ambient temperature -20℃~40℃
Relative humidity ≤90%

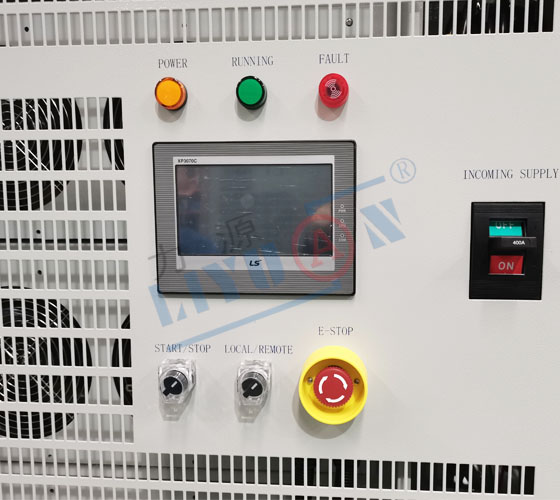

Control Mode Operating mode PLC, ADDA, Ethernet, RS485 and RS232

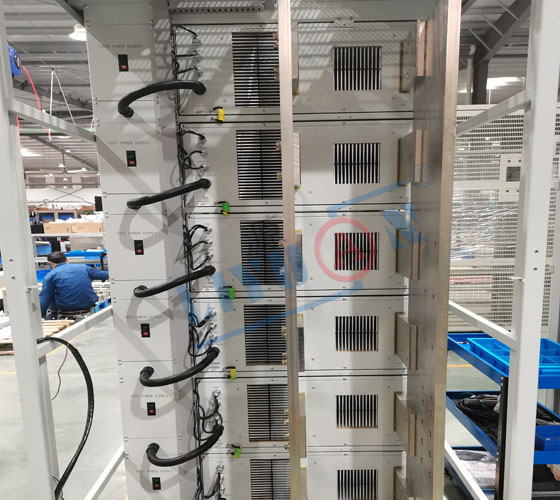

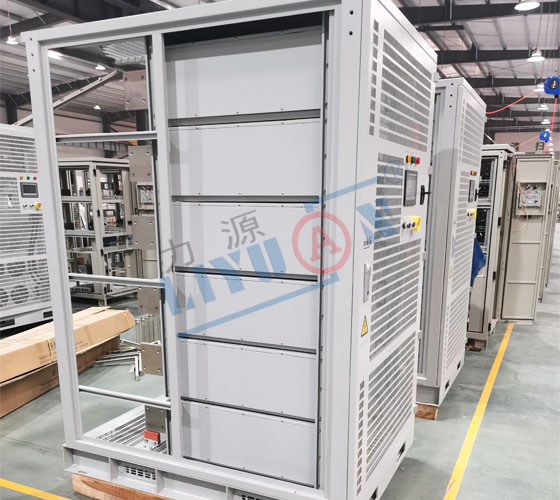

Power unit Power unit Consists of six 3000A/10V units in parallel
External Dimension Height*Width*Depth H1455mm×W700mm×D1300mm
Protection Characteristics With over voltage, over current, overload, short circuit, overheating and other abnormal self-protection function
Optional models
Application Model Output Parameters
Fluoride electrolysis, SF4,SF6 TBSB-9000A/12V 12Vdc/9000A
TBSB-10000A/12V 12Vdc/10000A
TBSB-6000A/15V 15Vdc/6000A
TBFBZ-13000A/9.5V 9.5Vdc/13000A
TBFBZ-13000A/10V 10Vdc/13000A
TBFBZ-15000A/10V 10Vdc/15000A
TBFBZ-18000A/11V 11Vdc/18000A
TBSB-20000A/9V 9Vdc/20000A
TBSB-10000A/15V 15Vdc/10000A
TBSB-12000A/15V 15Vdc12000A
TBSB-24000A/15V 15Vdc/24000A
TDSB-2000A/70V 70Vdc/2000A
TDSB-2000A/90V 90Vdc/2000A
TDSB-3000A/65V 65Vdc/3000A
TDSB-1800A/80V 80Vdc/1800A
TDSB-2000A/100V 100Vdc/2000A
TDSB-6000A/50V 50Vdc/6000A
KES-7000A/150V 150Vdc/7000A
TBSB-12000A/20V 20Vdc/12000A
TBSB-13KA10V 10Vdc/13KA
TBSB-20KA10V 10Vdc/20KA
SF6 TBSB-6000A13V 13Vdc/6000A
TDSB-1500A80V 80Vdc/1500A
Hydrogen electrolysis KES-8.7KA655V 655Vdc/8.7KA
