Input parameters: Three phase, AC380V±10% ,50HZ
Output parameters: DC 0~55V/ 0~60V; 0~2000A/0~3000A
Output mode: Common DC output
Cooling method: Air cooling or water cooling
Power supply type:IGBT-based
Application Industry: Provide energy for the graphite heater inside the Monocrystalline silicon furnace.

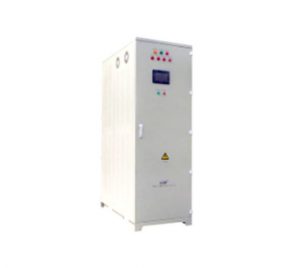

Monocrystalline silicon furnace heating power supply is a kind of high power dc power supply, the output of energy can be directly for the graphite heater in single crystal furnace heating, specially designed for industrial-grade semiconductor field heavily sb-doped silicon furnace using dc chopper power supply, it USES the three-phase bridge rectifier power supply, IGBT chopper output devices, by PWM control mode to realize continuous adjustable dc voltage.
Both traditional and efficient (up to 97% efficient).
A stable and reliable harmonic control method.
A variety of sizes and cooling methods are available.
Various control modes constant voltage, constant current, and constant power.
High control accuracy, convenient power calibration.
Digital control mode, high reliability.
Control has fast response speed, good dynamic characteristics, and good flow sharing consistency.
High power factor, high efficiency, high stability.
A user-friendly interface, a variety of control signals available.
| Items | Parameter |
| Input Voltage | Three phase AC380V土10%, 50土1HZ |
| Output Voltage | 0~55v, 0~60v, customized available |
| Output Current | Major 0~3000A ; Assist 0~2000A ,customized available |
| Output Power | 0~ (150KH+100KW) , customized available |
| Power Factor | >0.95 |
| Conversion Efficiency | >97% (TB series) ; >95% (TD series) |
| Stabilization Accuracy | +0. 01KW |
| Current Ripple Coefficient | ≤1% |
| Rectifier System | TB series MOS rectification; TD Quick recovery diode rectifier |
| Inverter bridge switch mode | Full bridge inversion |
| Machine switching frequency | 15KHZ |
| Working mode | Long term continuous work at full load |
| Load | Class II |
| Cooling type | Water-cooled or Air-cooled |
| Transformer insulation class | Class F |
| Protection | Over voltage, over current, under voltage, short circuit, lack of phase, overheating and other protective functions. |
| Operating temperature | -20-45C |
| Protection class | IP54 |
| Design service life | 20 Years |
| No. | Model | Current | Voltage | Series | Cooling |
| 1 | TBS-MS1 | 3000A/2000A | 55V or 60V | High efficiency | Water-cooled |
| 2 | TDS-MS1 | 3000A/ 2000A | 55V or 60V | Traditional model | Water-cooled |
| 3 | TBF-MS1 | 3000A/2000A | 55V or 60V | High efficiency | Air-cooled |
| 4 | TDF-MS1 | 3000A/2000A | 55V or 60V | Traditional model | Air-cooled |
