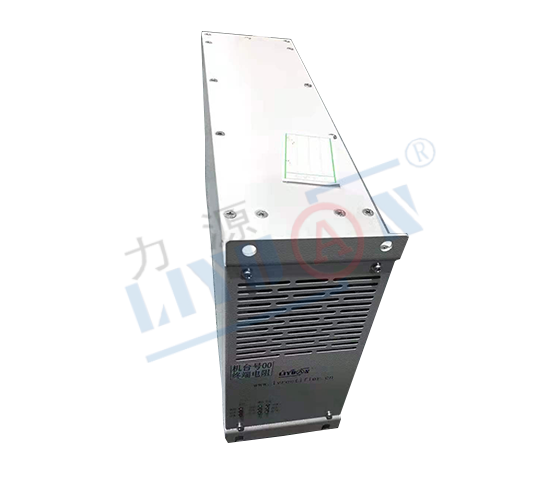

10V 200A Rectifier For Silver Plating

Input parameters: Three phase, AC380V±10% ,50HZ

Output parameters: DC 0~10V 0~200A

Output mode: Common DC output

Cooling method: Air cooling

Power supply type: IGBT-based

Application Industry: Surface treatment industry, such as silver and gold plating

Description

Electroplating is the process of applying a thin layer of other metals or alloys on the surface of certain metals by electrolysis. It is a process of applying a metal film to the surface of metals or other materials to prevent metal oxidation (such as rust), improve wear resistance, electrical conductivity, reflectivity, corrosion resistance (copper sulfate, etc.) and enhance aesthetics.

Types of plating

  1. Copper plating: priming, enhance the ability to adhere to the plating layer, and the ability to resist corrosion. (Copper is easy to oxidation, oxidation, copper green no longer conductive, so copper-plated products must do copper protection)
  2. Nickel plating: priming or appearance, to enhance the corrosion resistance and wear resistance, (where the chemical nickel for the modern process of wear resistance than chrome plating). (Note that many electronic products, such as DIN head, N head, no longer use nickel priming, mainly because nickel is magnetic, will affect the electrical properties inside the passive intermodulation)
  3. Gold plating: improve the conductive contact impedance, enhance signal transmission. (Gold is the most stable, but also the most expensive.)
  4. Palladium-nickel plating: improve the conductive contact impedance, enhance signal transmission, wear resistance than gold.
  5. Tin-lead plating: improve soldering ability, soon to be replaced by other substitutes (because of the lead content is now mostly changed to bright tin and mist tin plating).
  6. Silver plating: improve the conductive contact impedance, improve signal transmission. (Silver performance is the best, easy to oxidation, oxidation also conductive)rectifier for zinc plating

Elements of electroplating

  1. Cathode: the plated object, referring to various connector terminals.
  2. Anode: If it is soluble anode, it is the metal to be plated. If it is insoluble anode, most of them are precious metals (white gold, iridium oxide).
  3. Plating solution: plating solution containing ions of the metal to be plated.
  4. Plating tank: The tank that can bear and store the plating solution, generally considering strength, corrosion resistance, temperature resistance, etc.
  5. Rectifier: The equipment to provide DC power supply.
Technical Parameters

Characteristic Types

Parameter Items

Technical Requirements
Power Types  Power types High-frequency Power Supply
Model and specifications TBFBZ-200A/10V
Cooling mode Air-cooled
Switch tube type IGBT
Input Characteristics Rated Input Voltage Three-phase, AC380V±10% ,50HZ
Rated Input Power 2.7kW
Rated Input Current AC 4.2A
Input Power Factor COSΦ≥0.95
Output Characteristics Output Voltage DC  0~10V
Output Current DC  0~250A
Stabilized Current Precision ≤1%(Rated Current)
According to accuracy 1A,0.01V
Rated Output efficiency ≥91%
Environmental Conditions Installation site Indoor installations
Altitude ≤2000 meters
Ambient temperature -20℃~40℃
Relative humidity ≤90%

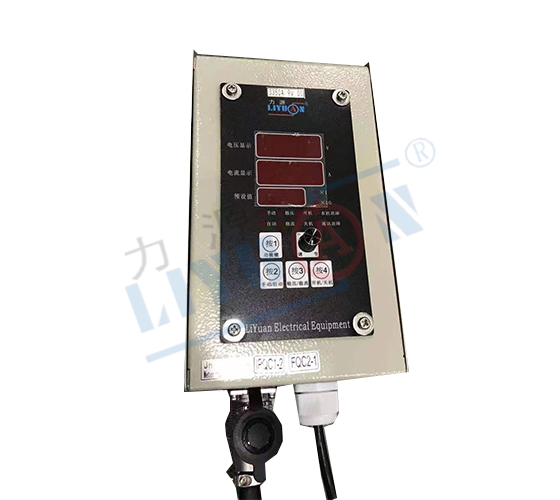

Control Mode Operating mode PLC, ADDA, Ethernet, RS485 and RS232
Weight Net weight About 12KG
External Dimension Height*Width*Depth H225mm×W230mm×D428mm
Protection Characteristics With over voltage, over current, overload, short circuit, overheating and other abnormal self-protection function
Optional models
Model Input Output Dimension (H*W*L)/mm
TBFBZ-50A/24V Three phaseAC380V±10% 50 HZ DC  0~24V  DC  0~50A 372*508*182
TBFBZ-50A/15V Three phaseAC380V±10% 50HZ DC  0~15V  DC  0~50A 227×230×378
TBFBZ-50A/6V Single phaseAC220V±10% 50HZ DC  0~6V  DC  0~50A 225×230×428
TBFBZ-50A/6V Single phaseAC220V±10% 50HZ DC  0~6V  DC  0~50A 225×100×433
TBFBZ-50A/15V Three phaseAC380V±10% 50HZ DC  0~15V  DC  0~50A 225×230×428
TBFBZ-50A/20V Three phaseAC380V±10% 50HZ DC  0~20V  DC  0~50A 225×230×428
TBFBZ-50A/10V Single phaseAC220V±10% 50HZ DC  0~10V  DC  0~50A 225×100×433
TBFBZ-50A/12V Three phaseAC380V±10% 50HZ DC  0~12V  DC  0~50A 225×230×428
TBFBZ-80A/10V Three phaseAC380V±10% 50HZ DC  0~10V  DC  0~80A 225×100×428
TBFBZ-30A/20V Single phaseAC220V±10% 50HZ DC  0~20V  DC  0~30A 227×230×378
